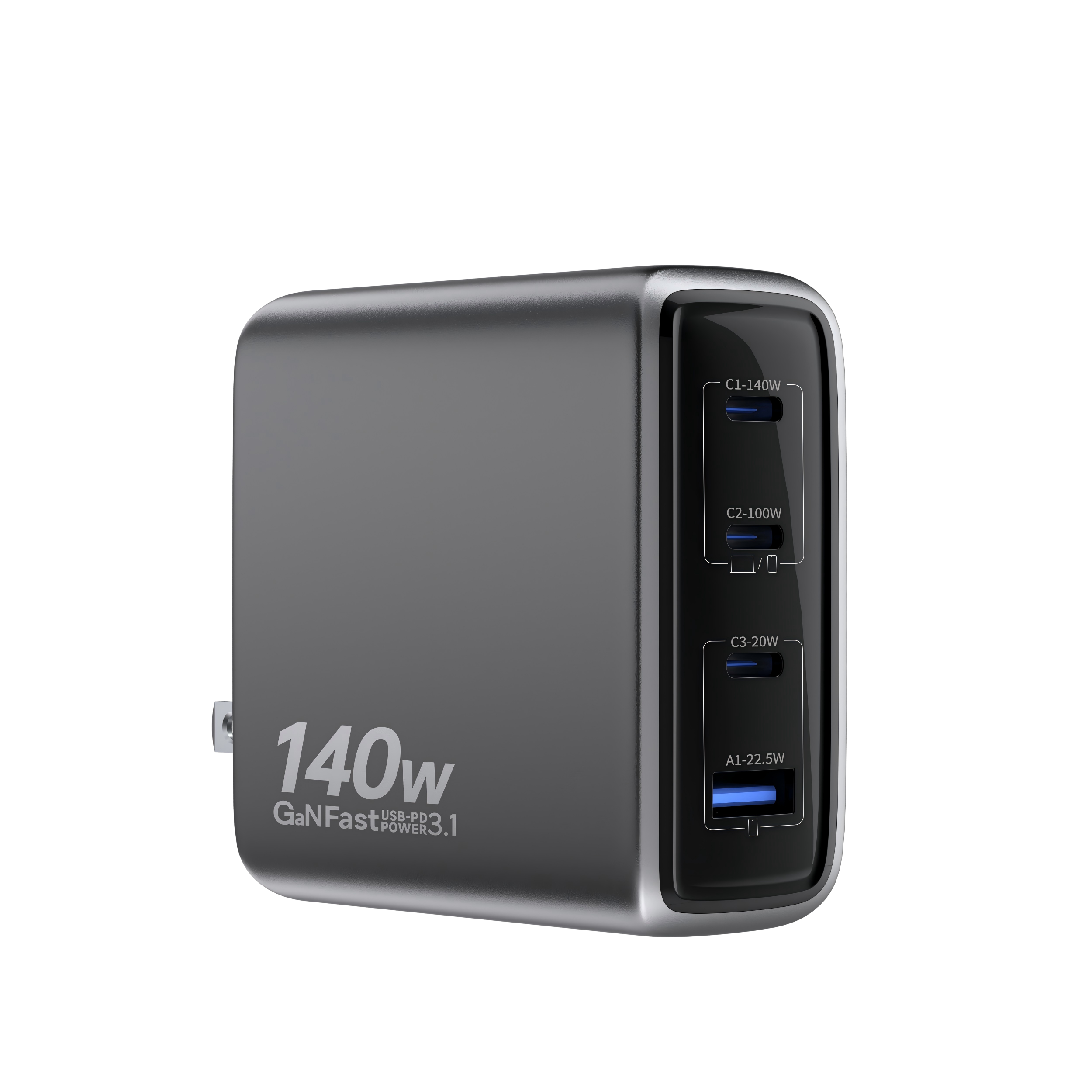

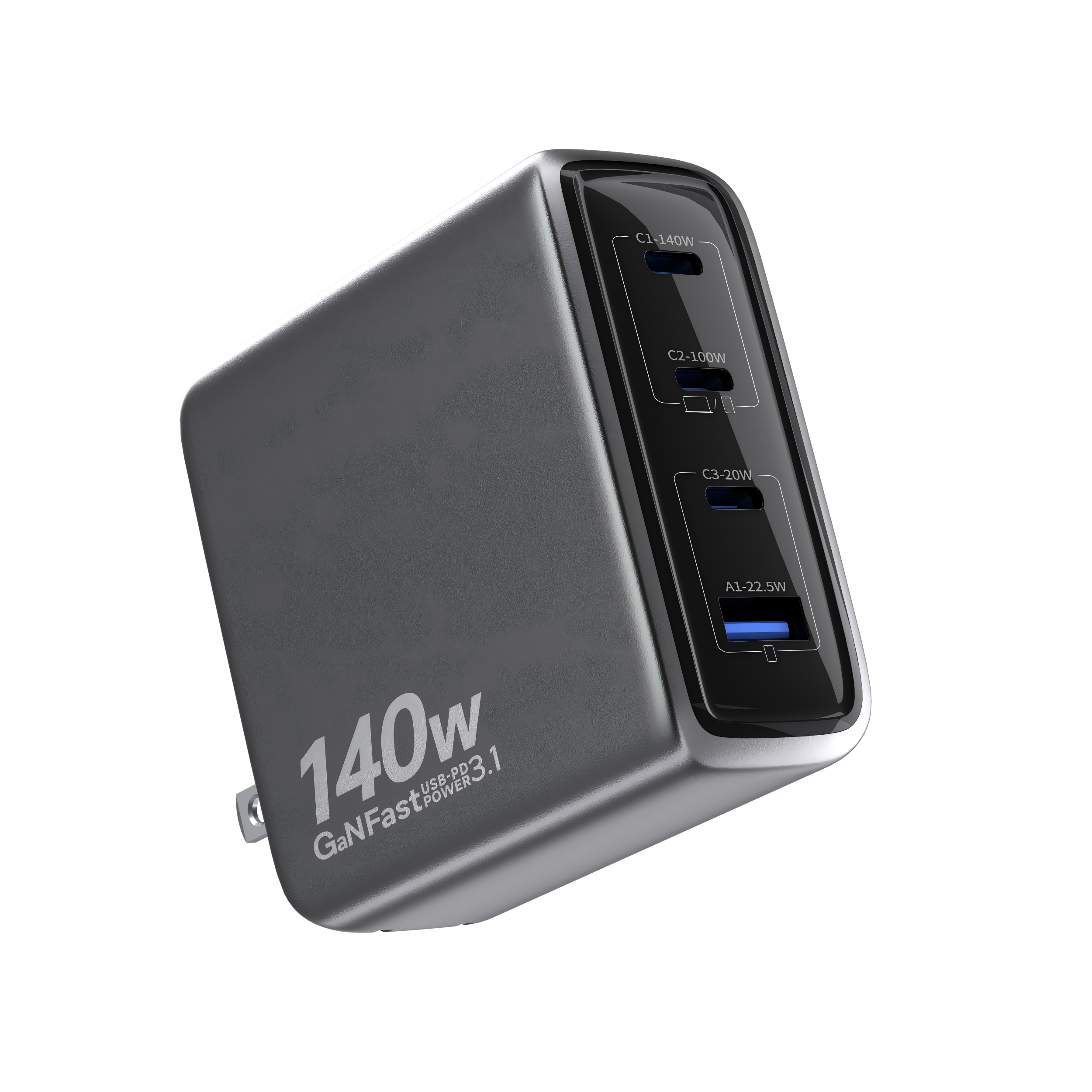

GaN 140W  Pro Max

GaN Super Fast Charger

PD3.1 USB-C1+C2+C3+A1

Input: AC 100-240V 50/60Hz 2.0A Max

Output Total Power: 140W Max

USB-C1: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/5A, 28V/5A 140W Max

PPS: 3.3-21V/5A 100W，EPR Capable 28V/5A 140W

USB-C2: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/5A 100W Max

PD3.0 PPS: 3.3-21V/5A 100W

USB-C3: 5V/3A, 9V/2.22A,12/1.67A 20W Max

PPS: 3.3-5.9V/3A , 3.3-11/2A

USB-A: 5V/3A, 9V/2A, 10V/2.25, 12V/2A 22.5Max

POWER Charging Protocols Support

USB PD3.1 EPR 140W, PPS, QC5

QC3+&2.0: 5-12V / 2.0A 24W

SCP: 3.3V-12V / 0.3-5.0A 23W

FCP: 5-12V / 2.0A 18W

Apple 2.4A 12W, DCP 7.5W

1-Port Charging 140W Max

USB-C1: 28V/5A 140W

USB-C2: 20V/5A 100W

USB-C3: 12V/3.25A 20W

USB-A1: 12V/1.50A 22.5W

2-Port Charging 130W Max

USB-C1+C2: 20V5A+20V/1.75A 100W+30W

USB-C1+C3: 20V5A+12V/1.67A 100W+20W

USB-C1+A1: 20V5A+12V/1.50A 100W+22.5W

USB-C2+C3: 20V5A+12V/1.67A 100W+20W

USB-C2+A1: 20V5A+12V/1.50A 100W+22.5W

USB-C3+A1: 5V3.0A 15W

3-Port Charging 115W Max

USB-C1+C2+C3: 20V3.25A+20V/1.5A+12V1.67A  65W+30W+20W

USB-C1+C2+C3: 20V/1.5A+20V3.25A+12V1.67A  30W+65W+20W

USB-C1+C2+A1: 20V3.25A+20V/1.5A+12V1.50A  65W+30W+22.5W

USB-C1+C2+A1: 20V/1.5A+20V3.25A+12V1.50A  30W+65W+22.5W

USB-C1+C3+A1: 20V5A+5V3.0A 100W+15W

USB-C2+C3+A1: 20V5A+5V3.0A 100W+15W

4-Port Charging 110W Max

USB-C1+C2+C3+A1: 20V3.25A+20V/1.5A+5V3A  65W+30W+15W

USB-C1+C2+C3+A1: 20V/1.5A+20V3.25A+5V3A  30W+65W+15W

AC Plug (X): US Collapsible plug

Size: 73.9(L)x33(W)x73(H) mm

94 V0 fire-proof PC housing

Technology：Metallic Paint & Black Gloss UV

Color:  Titanium Gray+Black

Product Standard：CE / ROHS / FCC

CB / UL / ETL , UKCA , PSE / KC
