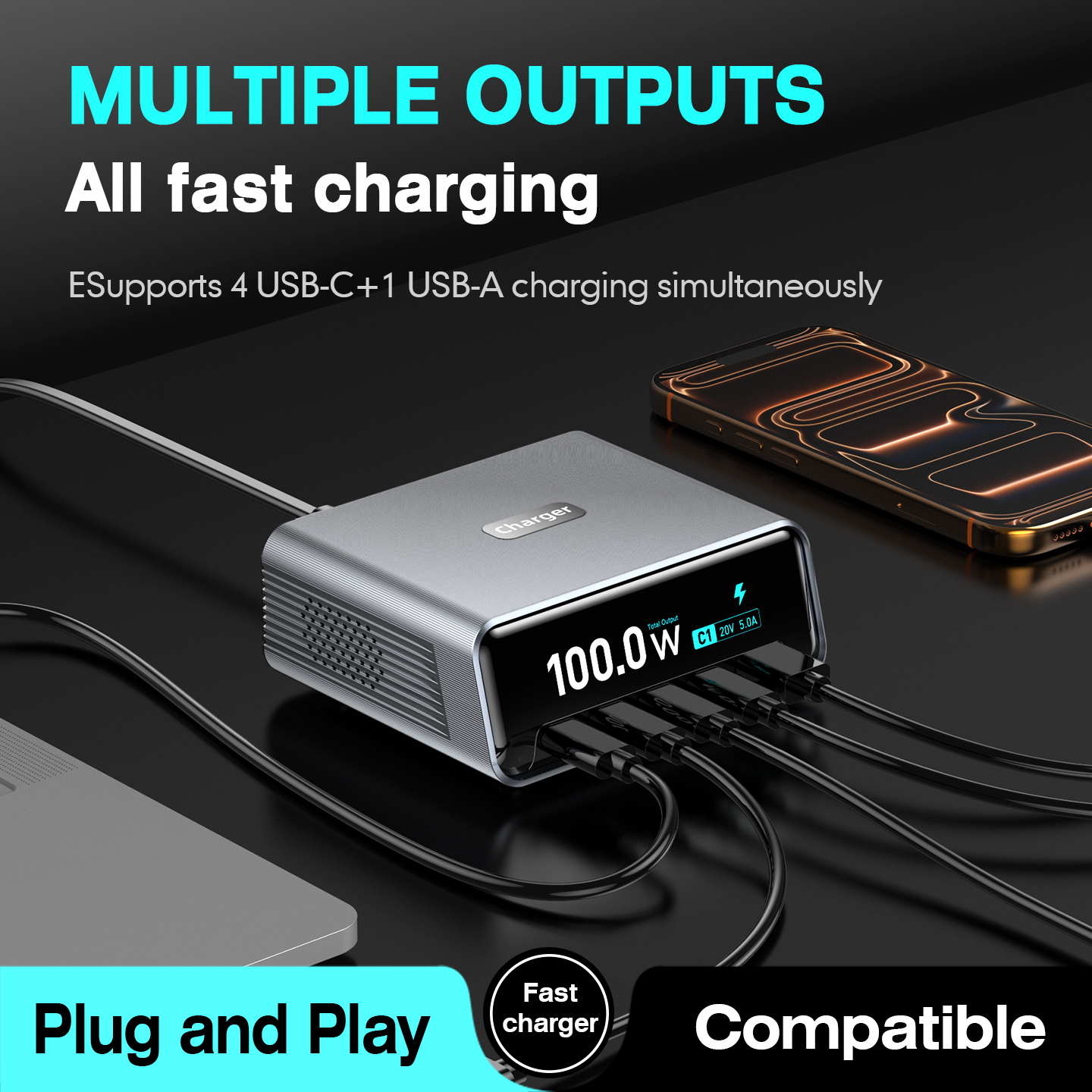

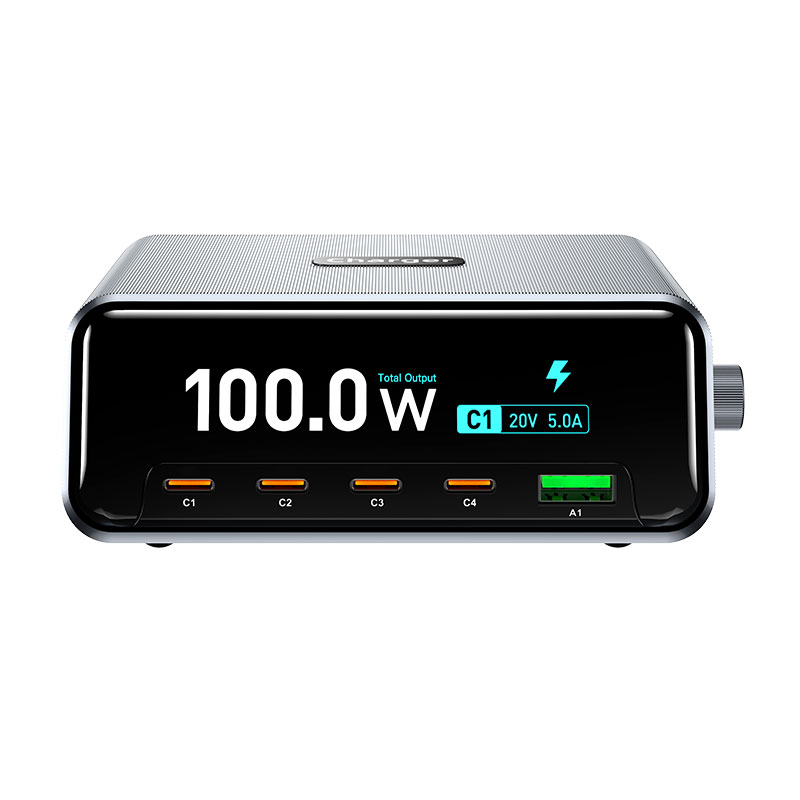

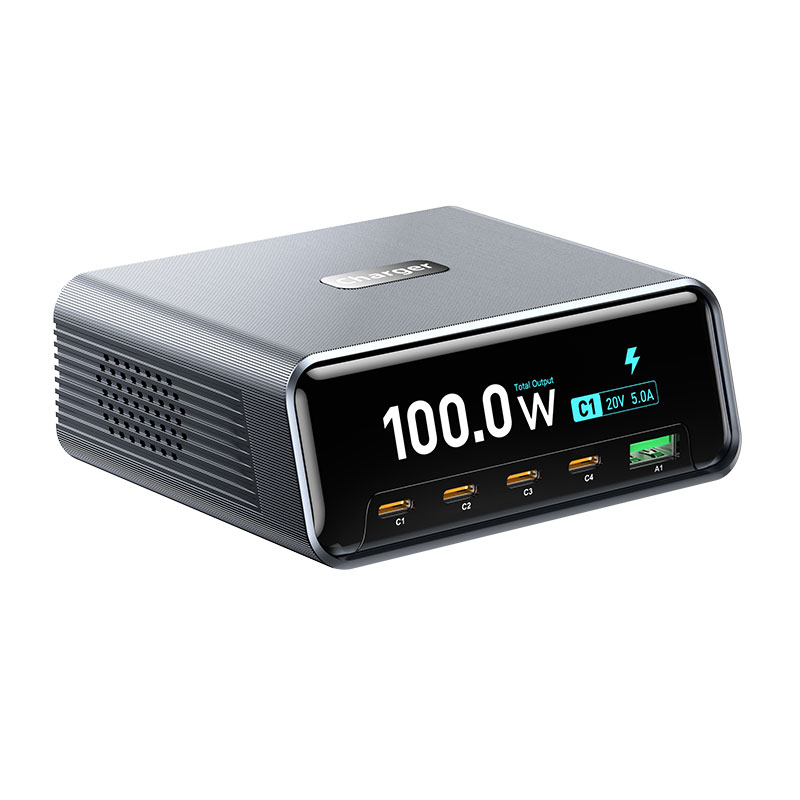

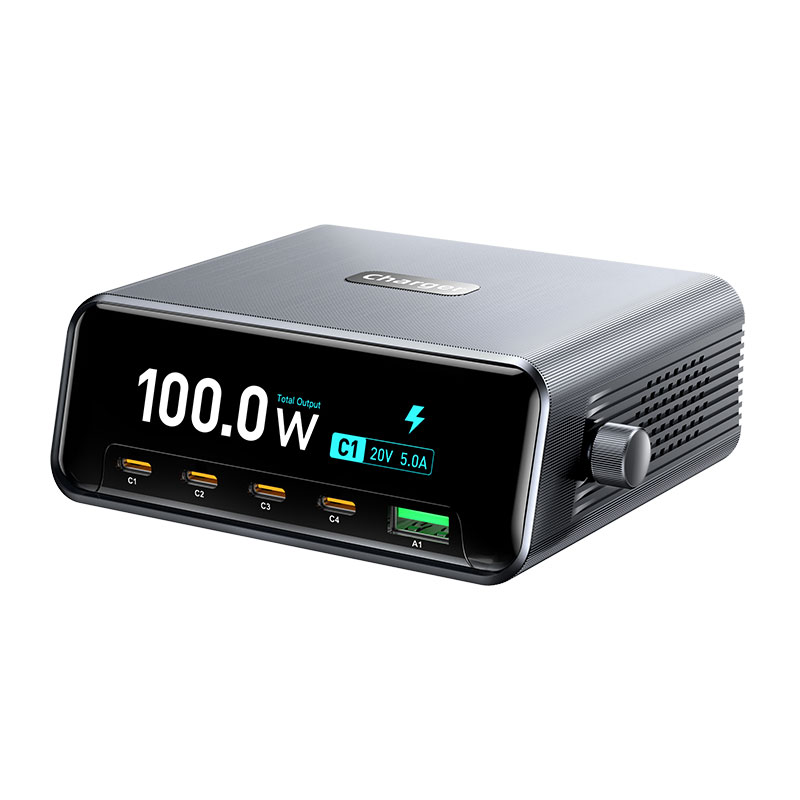

GaN 100W  4C1A—Desktop Pro

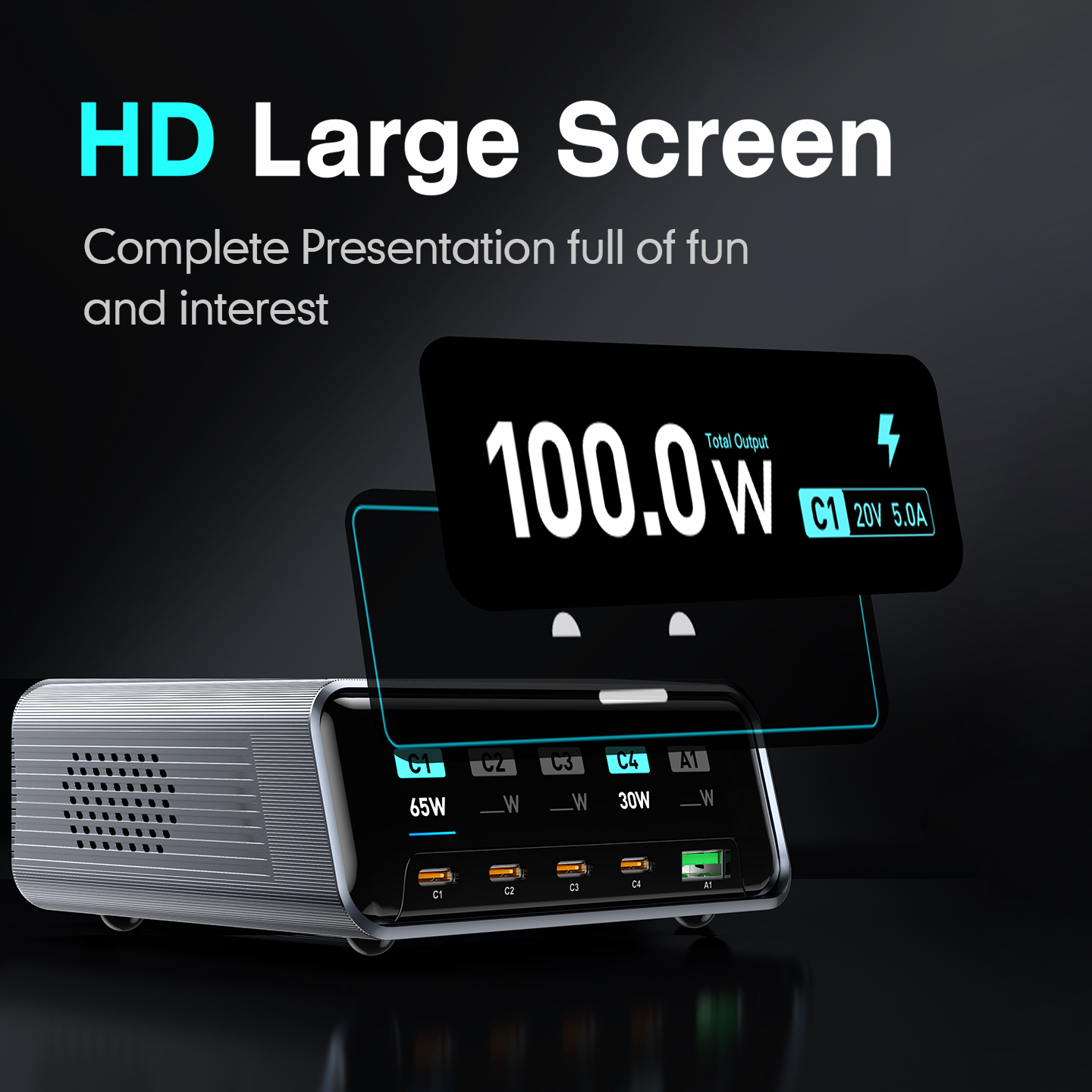

PowerView • GaN Fast Charger

PD3.0 USB-C1+C2+C3+C4+A1

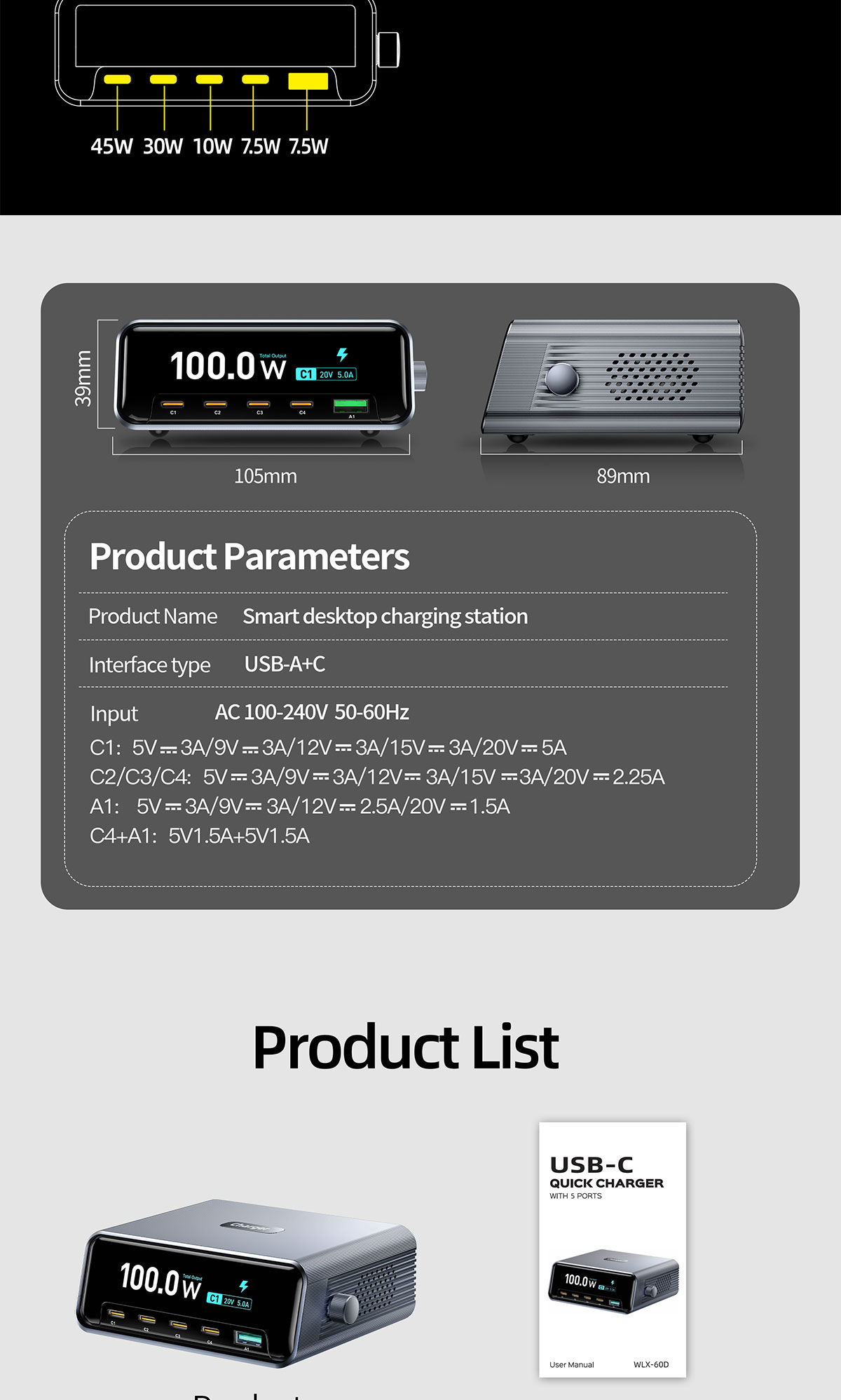

Input: AC-DC 100-240V 50/60Hz 2.0A

Output Total Power: 100W Max

USB-C1: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/5A 100W Max

USB-C2/C3/C4: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/2.25A 45W Max

USB-A: 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A 30W Max

POWER Charging Protocols Support

USB PD3.0 100W, PPS, QC5

PPS: 5-21V/5A 100W

USB PD3.0 45W, PPS, QC4+

PPS: 3.3-16V/3A

QC3.0,FCP,SCP,AFC

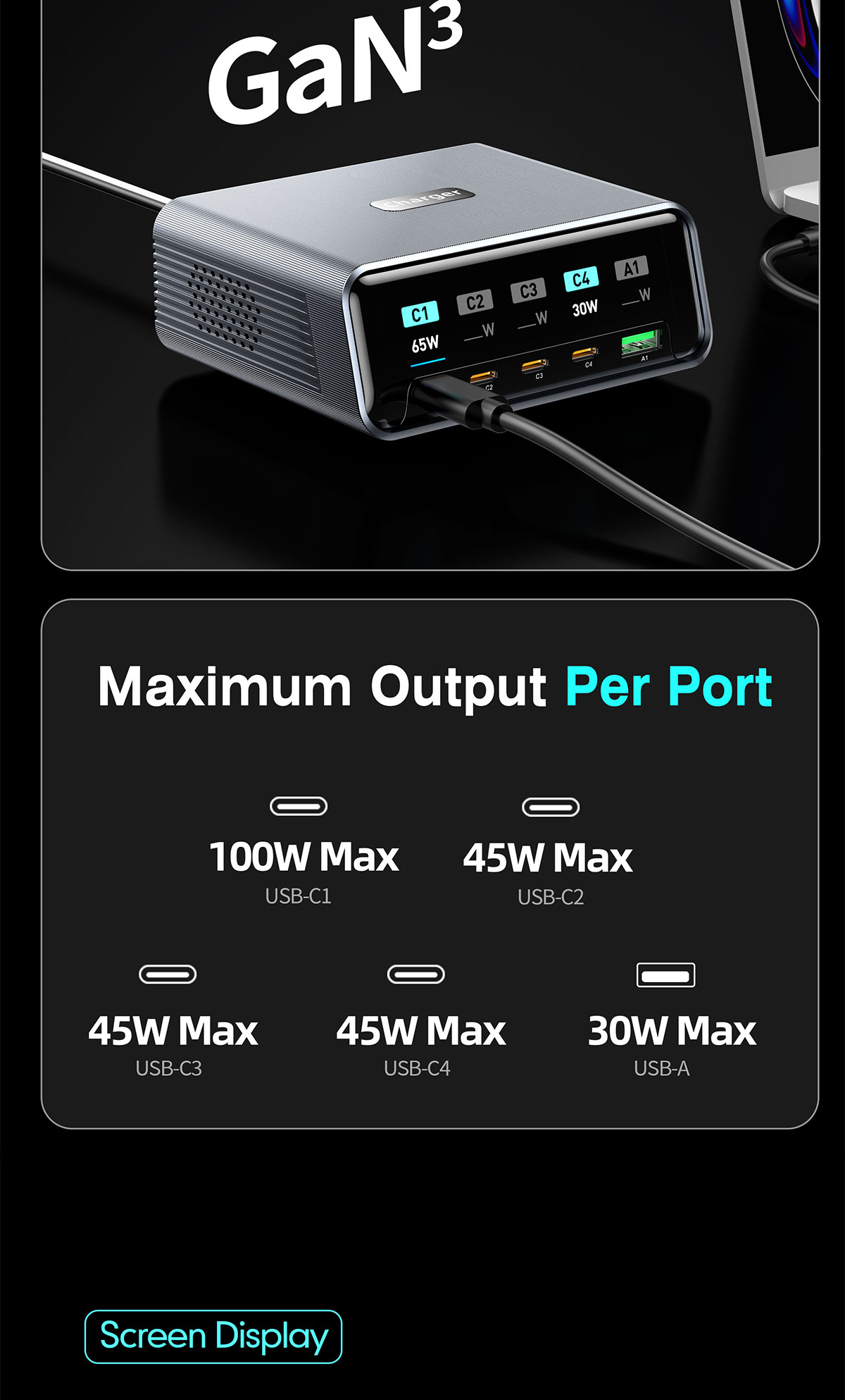

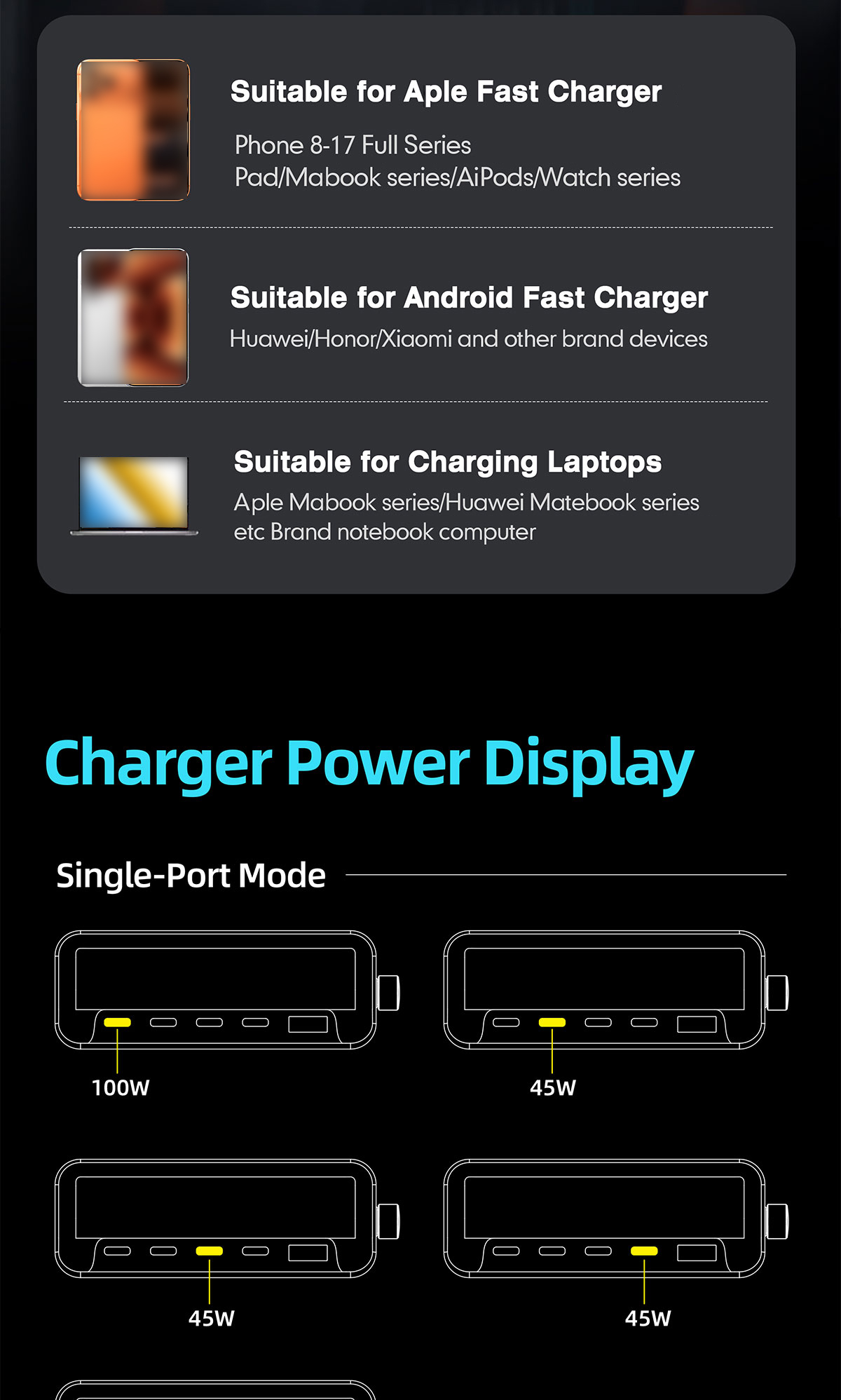

1-Port Charging 100W Max

USB-C1: 100W

USB-C2: 45W

USB-C3: 45W

USB-C4: 45W

USB-A1: 30W

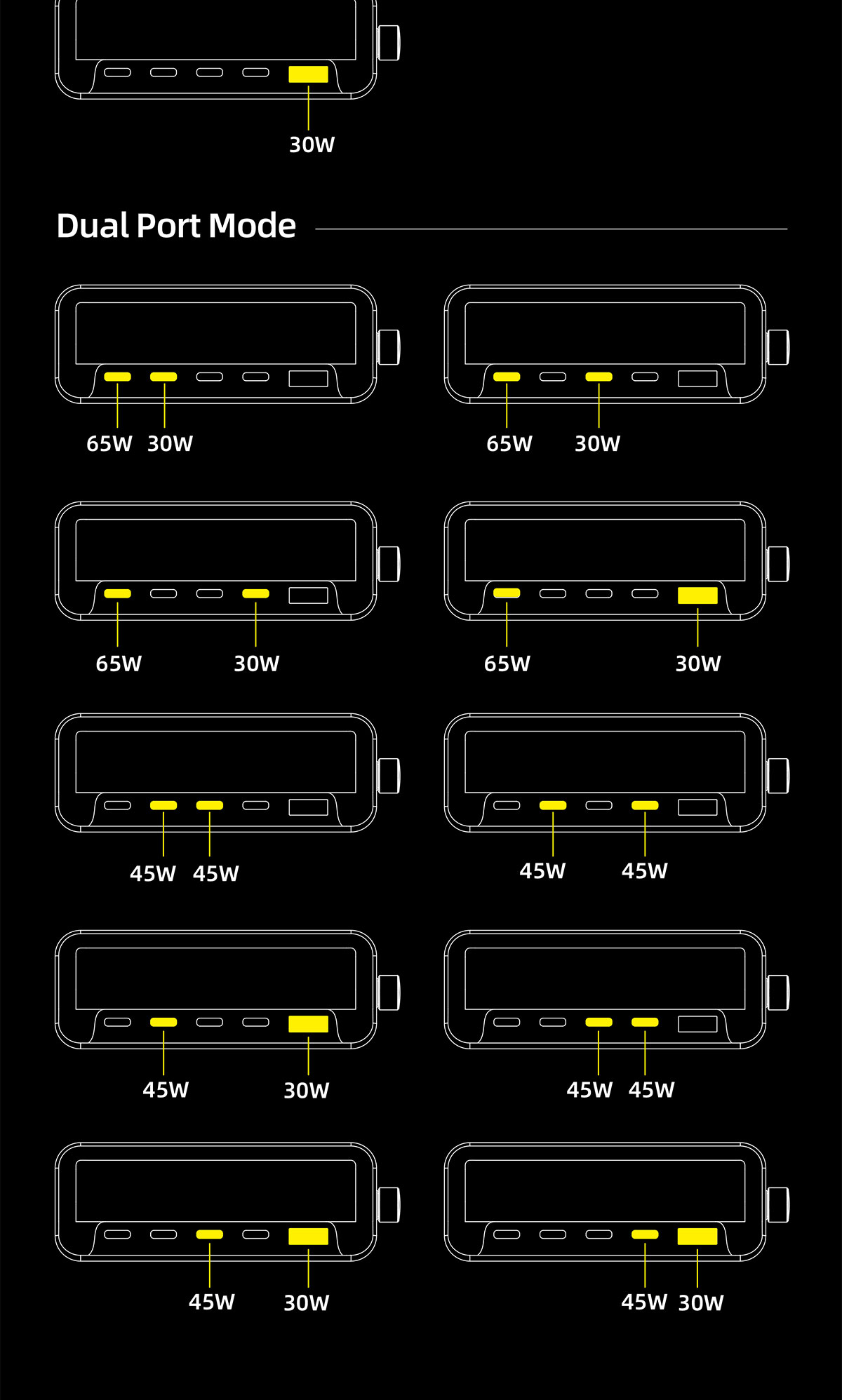

2-Port Charging 95W Max

USB-C1+C2:  65W+30W

USB-C1+C3:  65W+30W

USB-C1+C4:  65W+30W

USB-C1+A1:  65W+30W

USB-C2+C3:  65W+30W

USB-C2+C4:  65W+30W

USB-C3+C4:  65W+30W

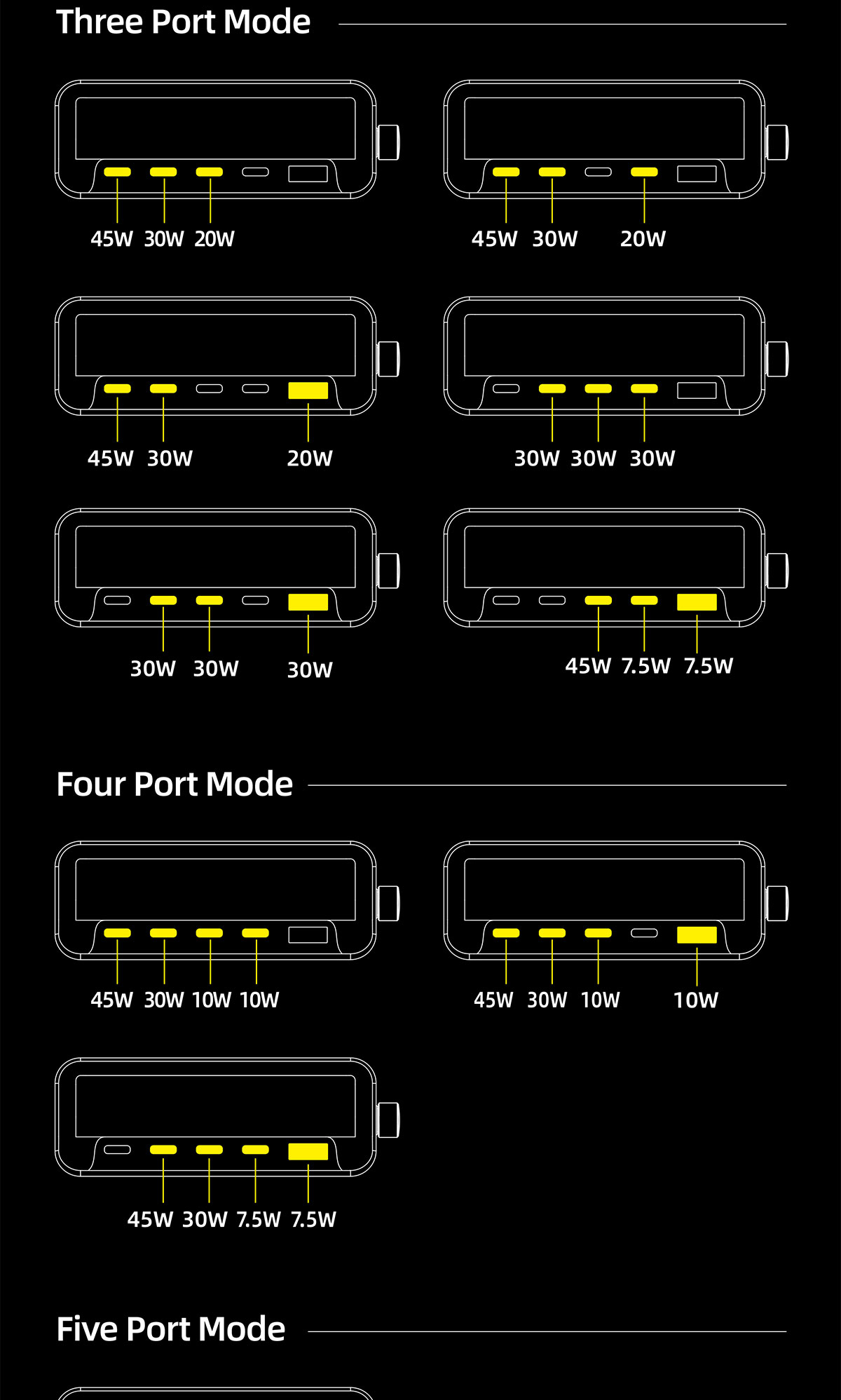

3-Port Charging 95W Max

USB-C1+C2+C3: 45W+30W+20W

USB-C1+C2+C4: 45W+30W+20W

USB-C1+C2+A1: 45W+30W+20W

USB-C2+C3+C4: 30W+30W+30W

USB-C2+C3+A1: 30W+30W+30W

4-Port Charging 100W Max

USB-C1+C2+C3+C4: 40W+20W+20W+20W

USB-C1+C2+C3+A1: 40W+20W+20W+20W

USB-C1+C3+C4+A1: 60W+20W+10W+10W

USB-C2+C3+C4+A1: 45W+35W+10W+10W

5-Port Charging 100W Max

USB-C1+C2+C3+C4+A1: 40W+20W+20W+10W+10W
