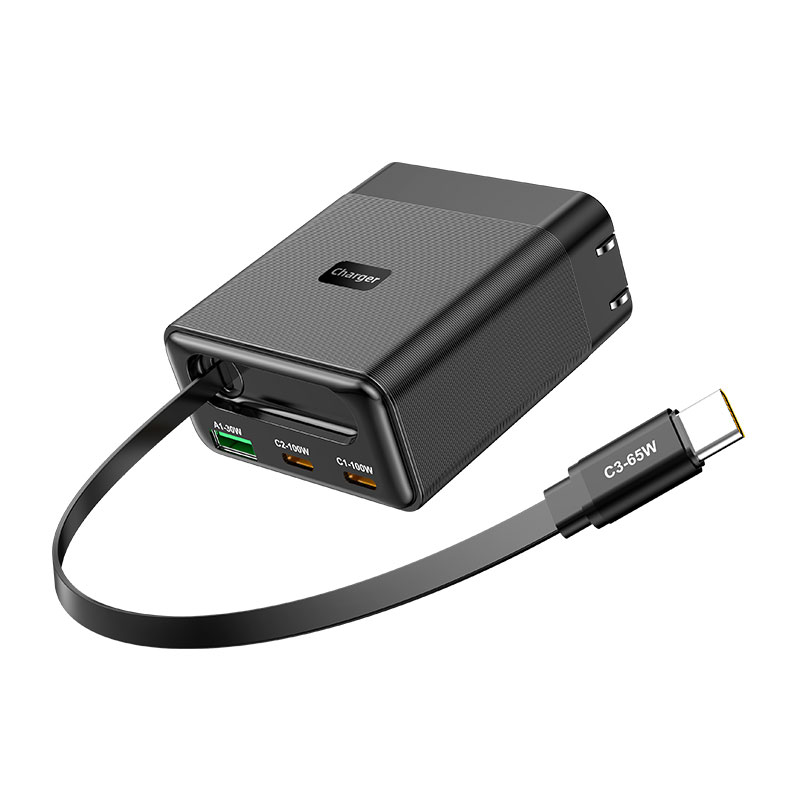

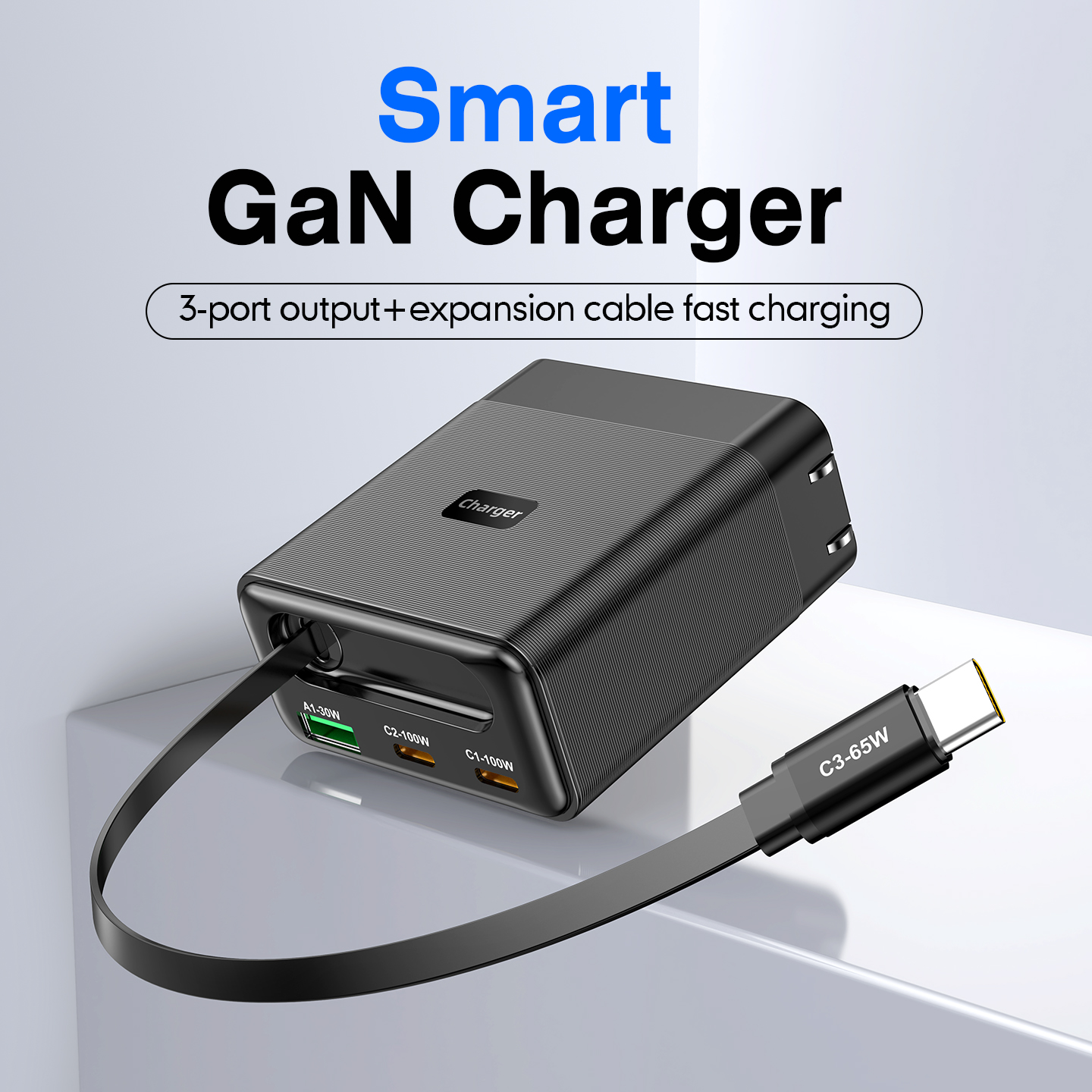

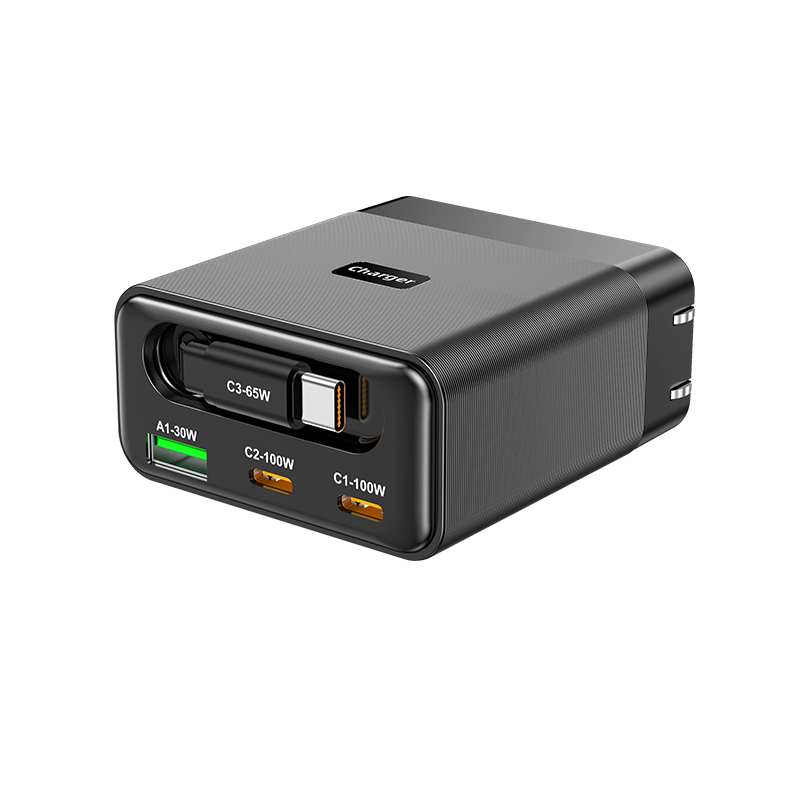

GaN 100W 3C1A - Slim Lite

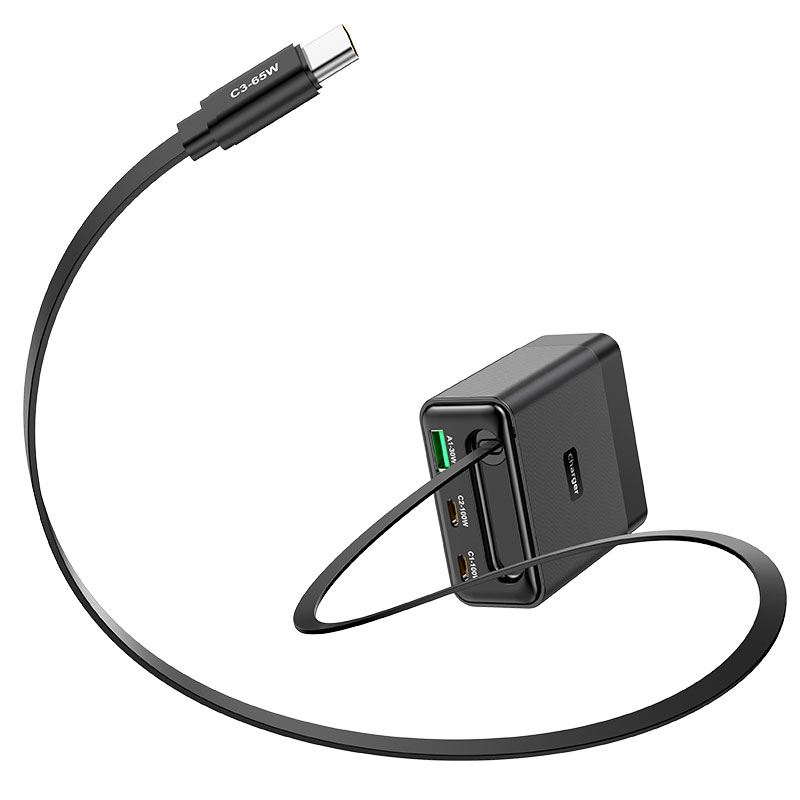

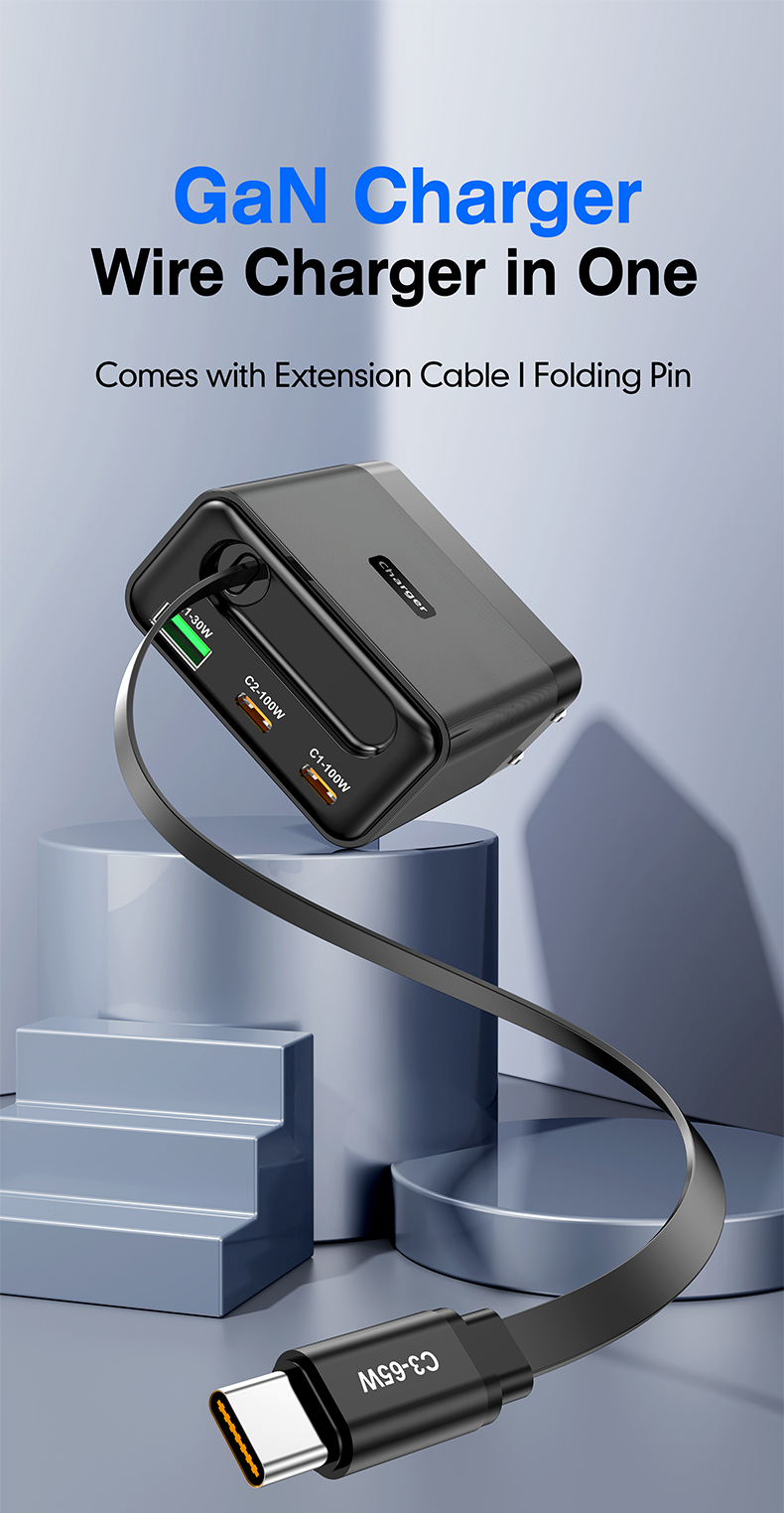

Super Slim Retract • GaN Fast Charger

PD3.0 USB-C1+C2+C3+A1

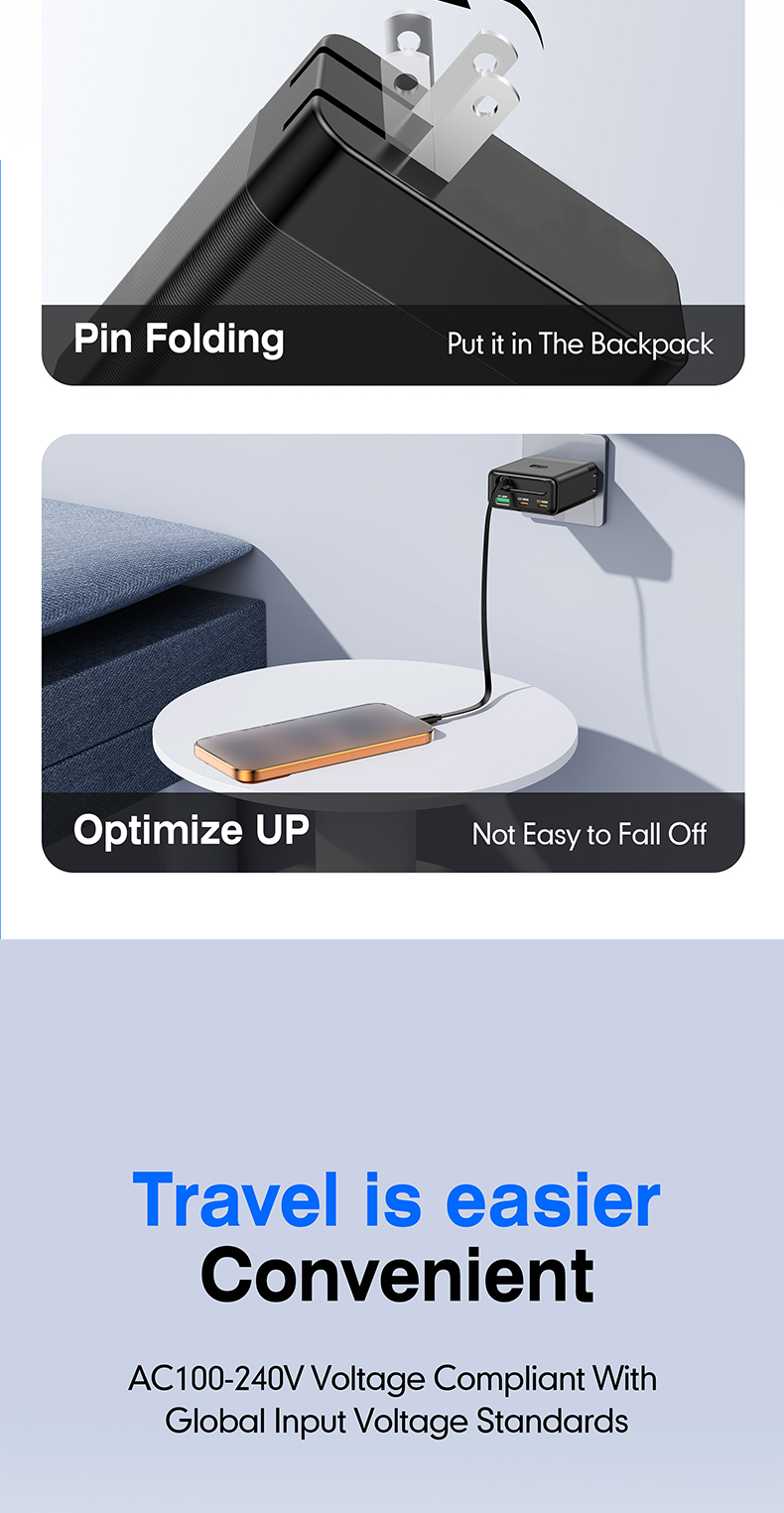

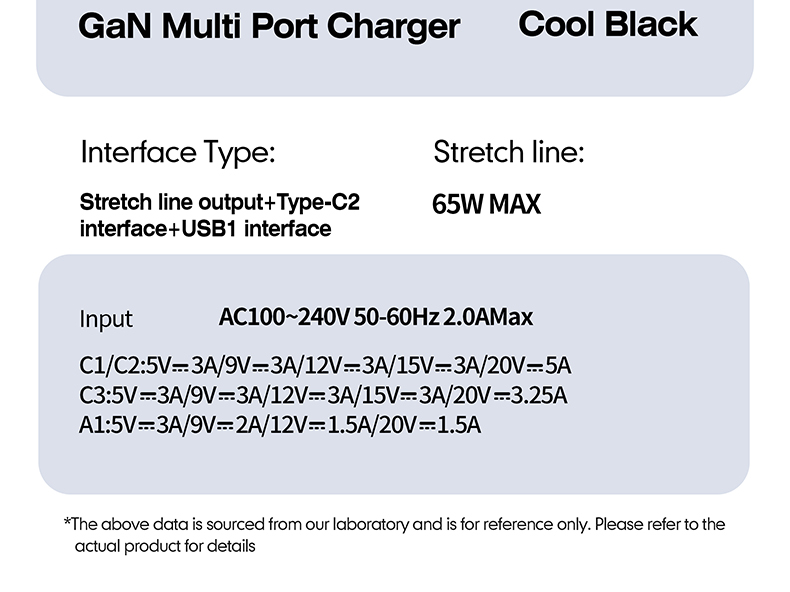

Input: AC 100-240V 50/60Hz 2.0A

Output Total Power: 100W Max

USB-C1 & C2: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/5A 100W Max

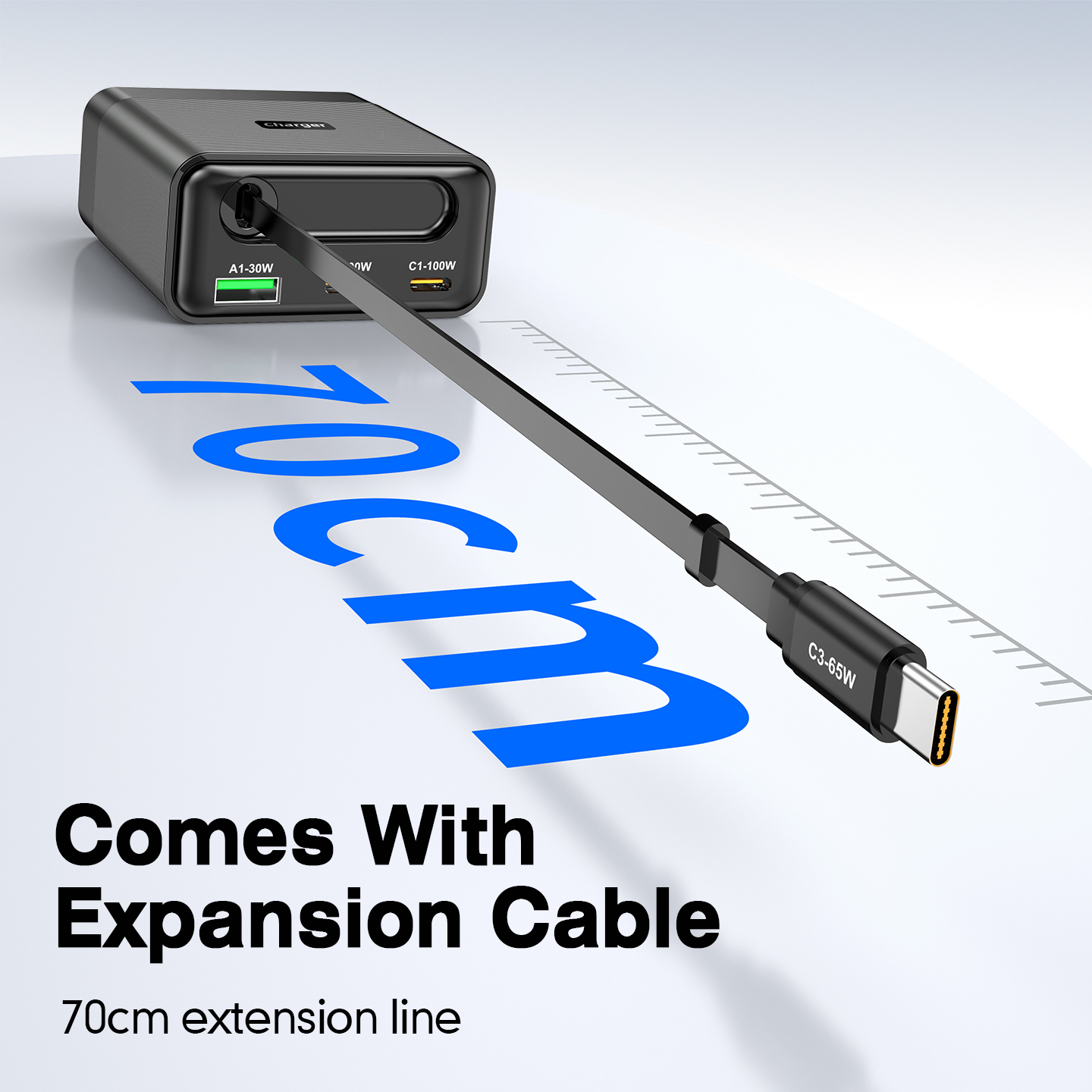

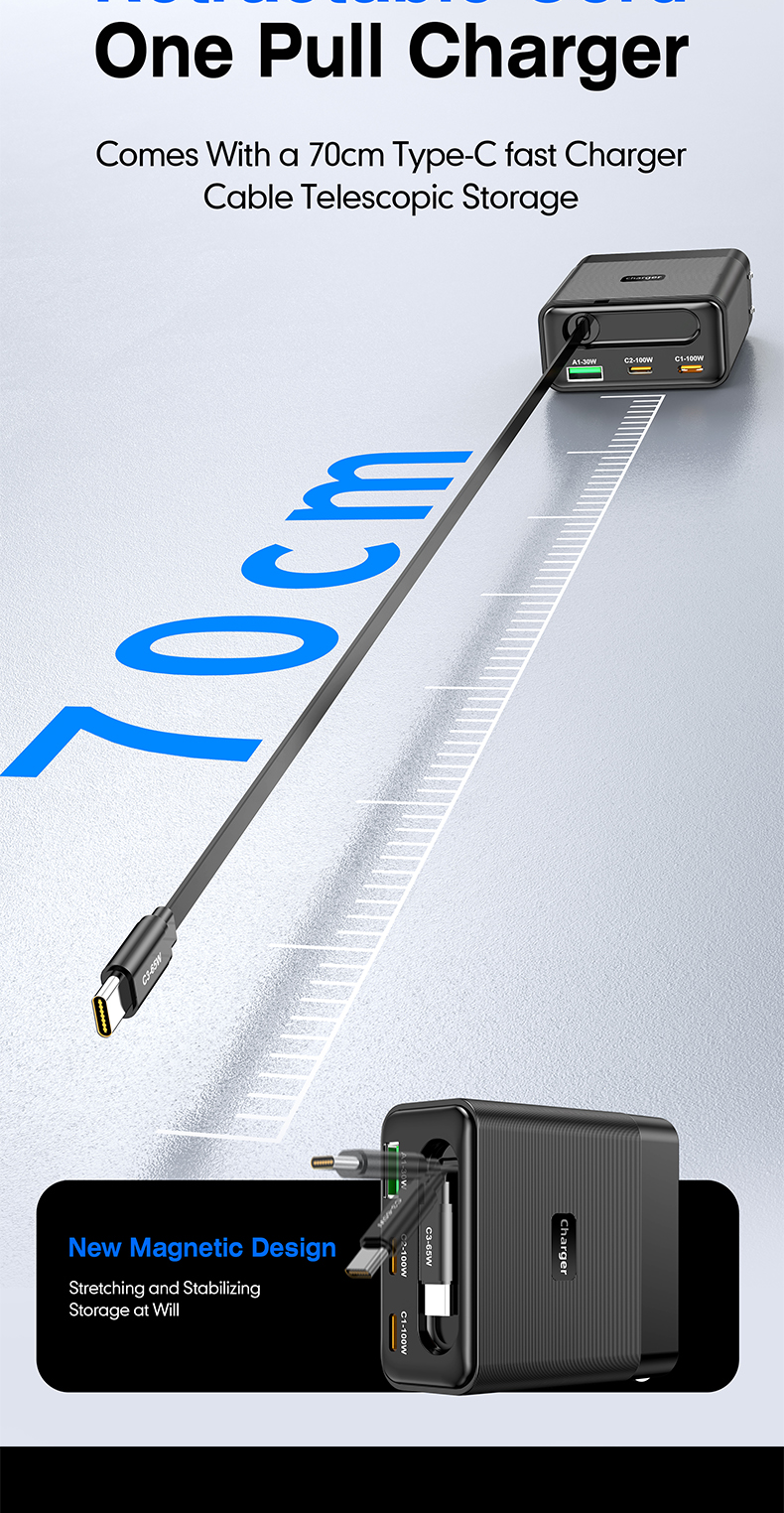

USB-C3 Cable: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/3.25A 65W Max

USB-A: 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A 30W Max

POWER Charging Protocols Support

USB PD3.0 100W, PPS, QC5

PPS: 5-21V/5A 100W

QC3.0,FCP,SCP,AFC

1-Port Charging 100W Max

USB-C1: 20V/5A 100W

USB-C2: 20V/5A 100W

USB-C3: 20V/3.25A 65W

USB-A1: 20V/1.50A 30W

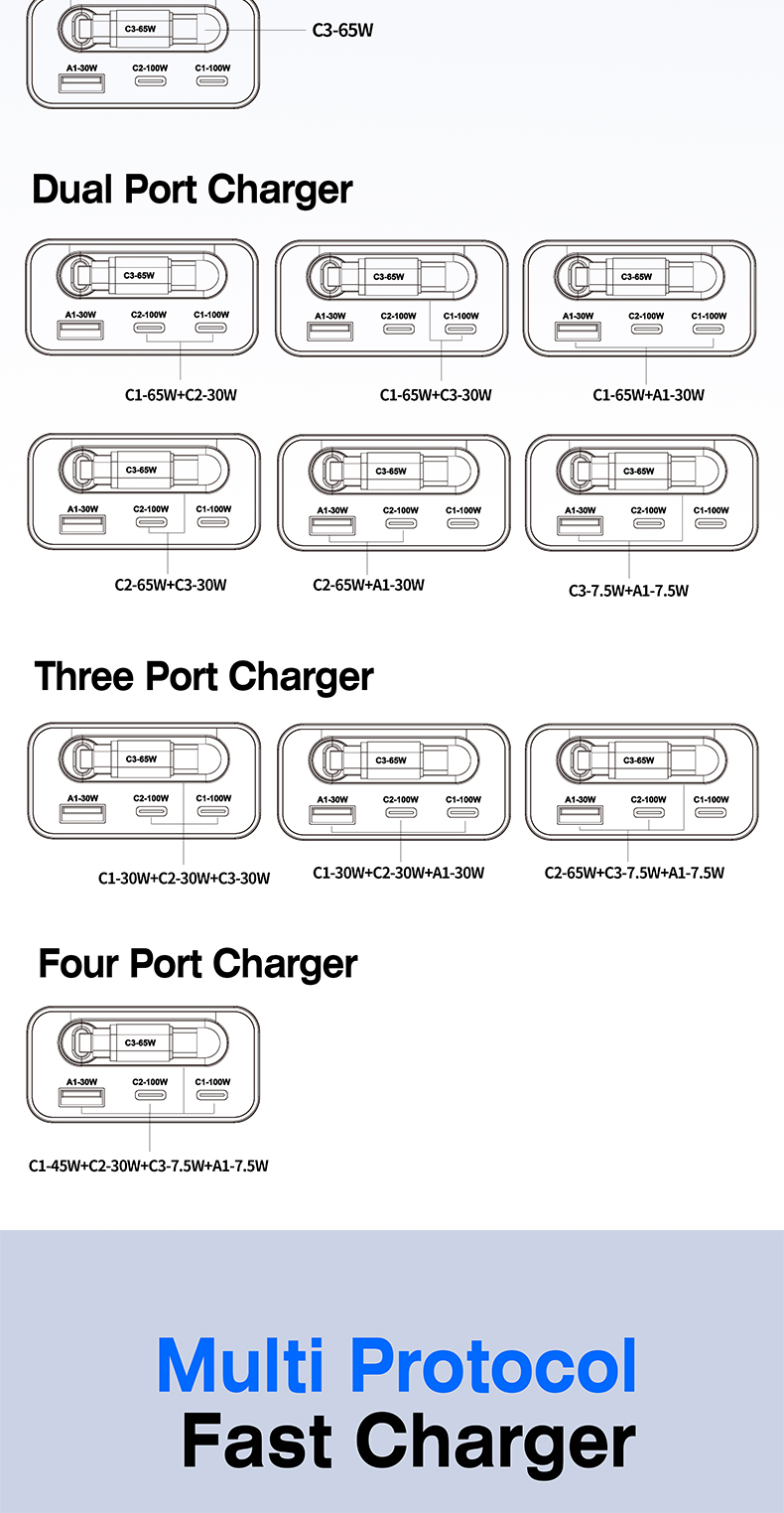

2-Port Charging 95W Max

USB-C1+C2:  65W+30W

USB-C1+C3:  65W+30W

USB-C1+A1:  65W+30W

USB-C2+C3:  65W+30W

USB-C2+A1:  65W+30W

USB-C3+A1:  7.5W+7.5W

3-Port Charging 90W Max

USB-C1+C2+C3: 30W+30W+30W

USB-C1+C2+A1: 30W+30W+30W

USB-C2+C3+A1: 65W+7.5W+7.5W

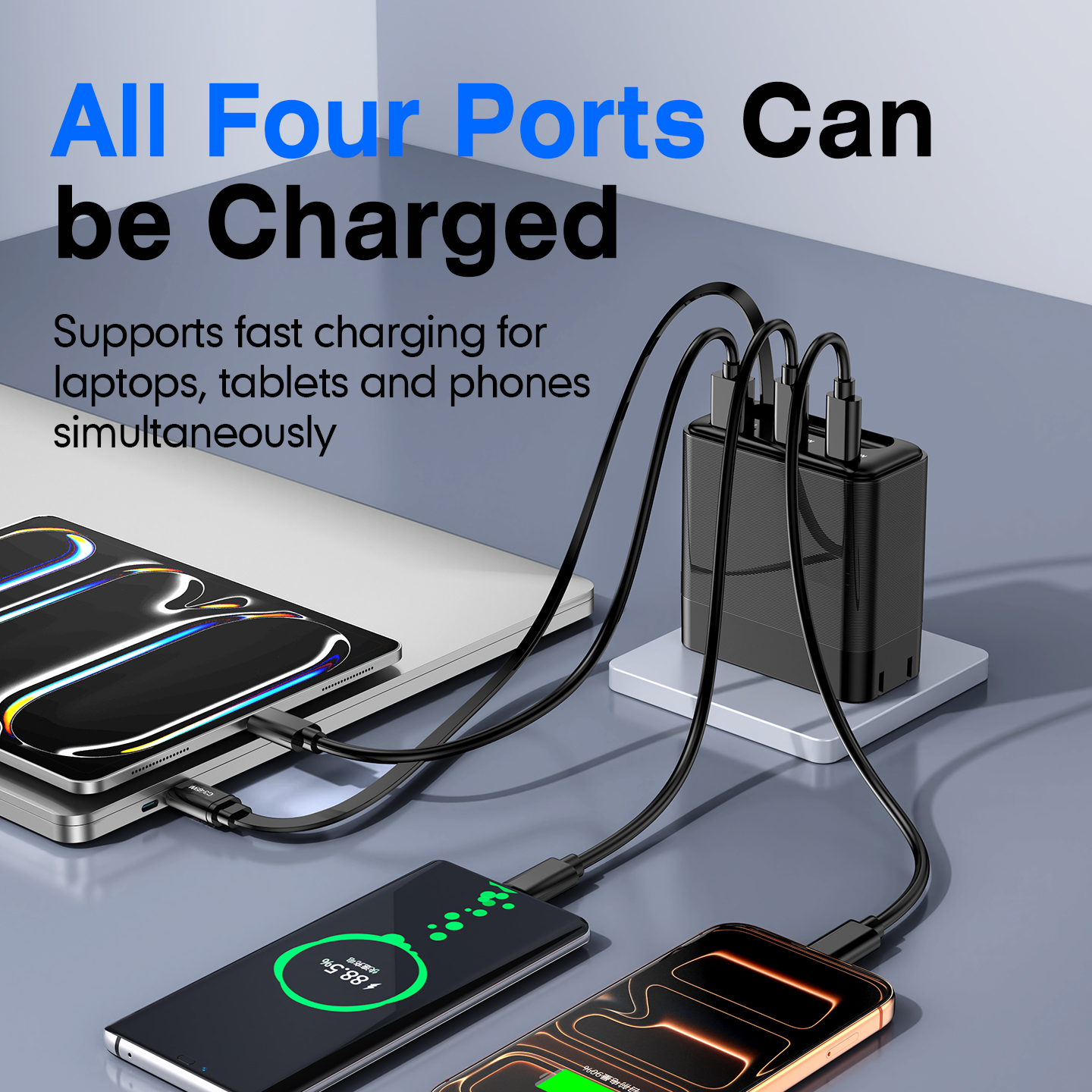

4-Port Charging 90W Max

USB-C1+C2+C3+A1: 45W+30W+7.5W+7.5W

PS：A standard-rated charging cable is needed to enable

high-power fast charging.

PD3.0 100W: C-C 100W 5A E-marker fast charging cable required
