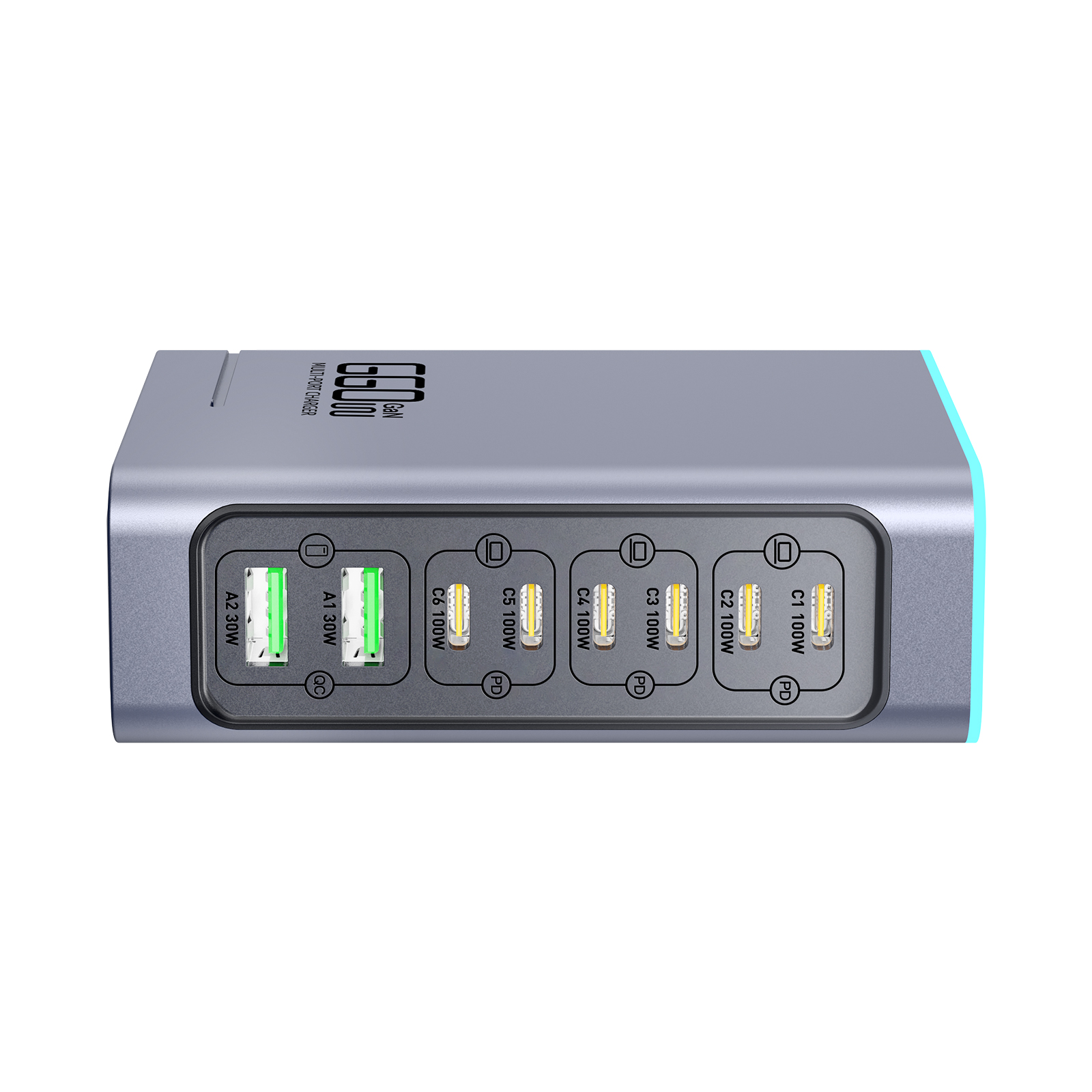

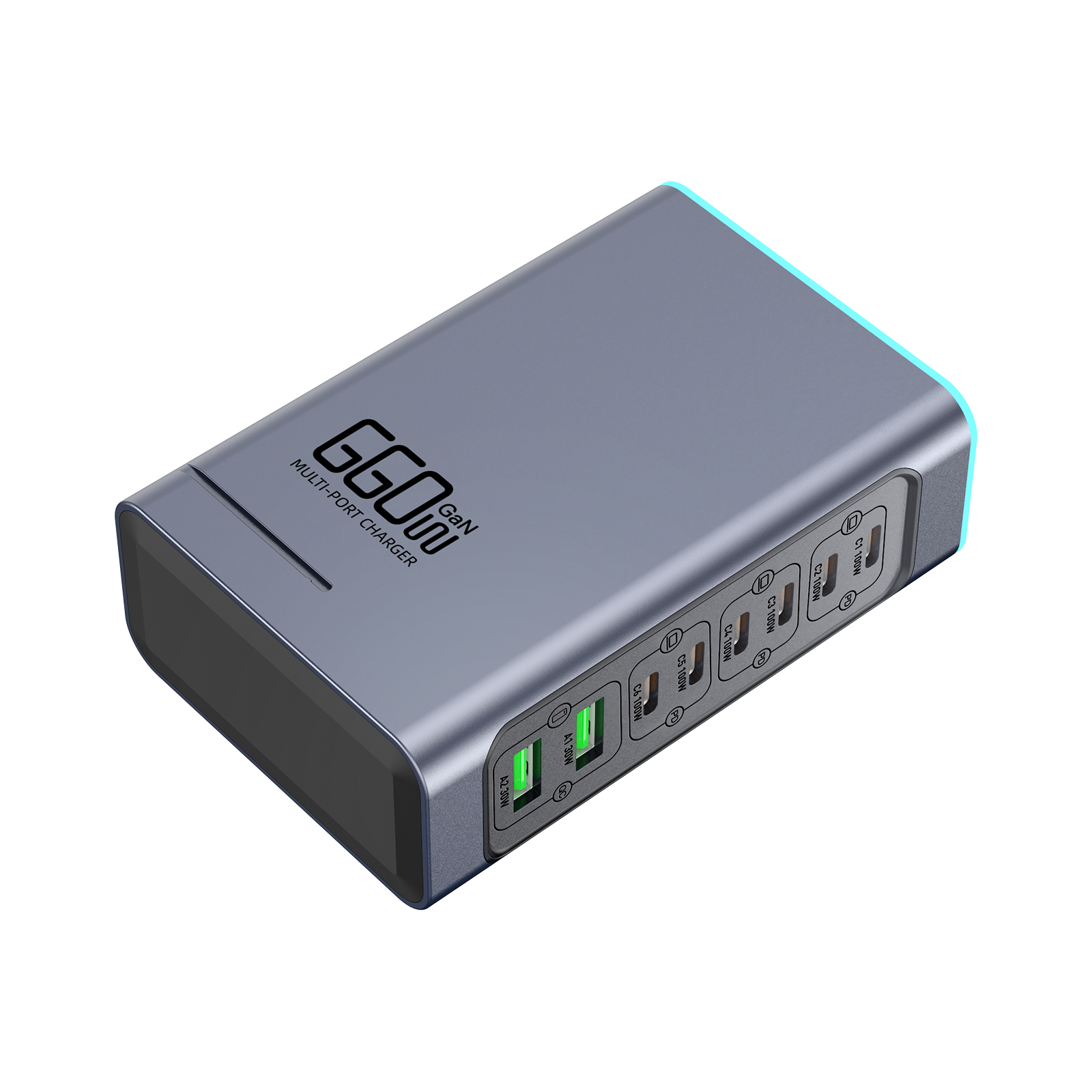

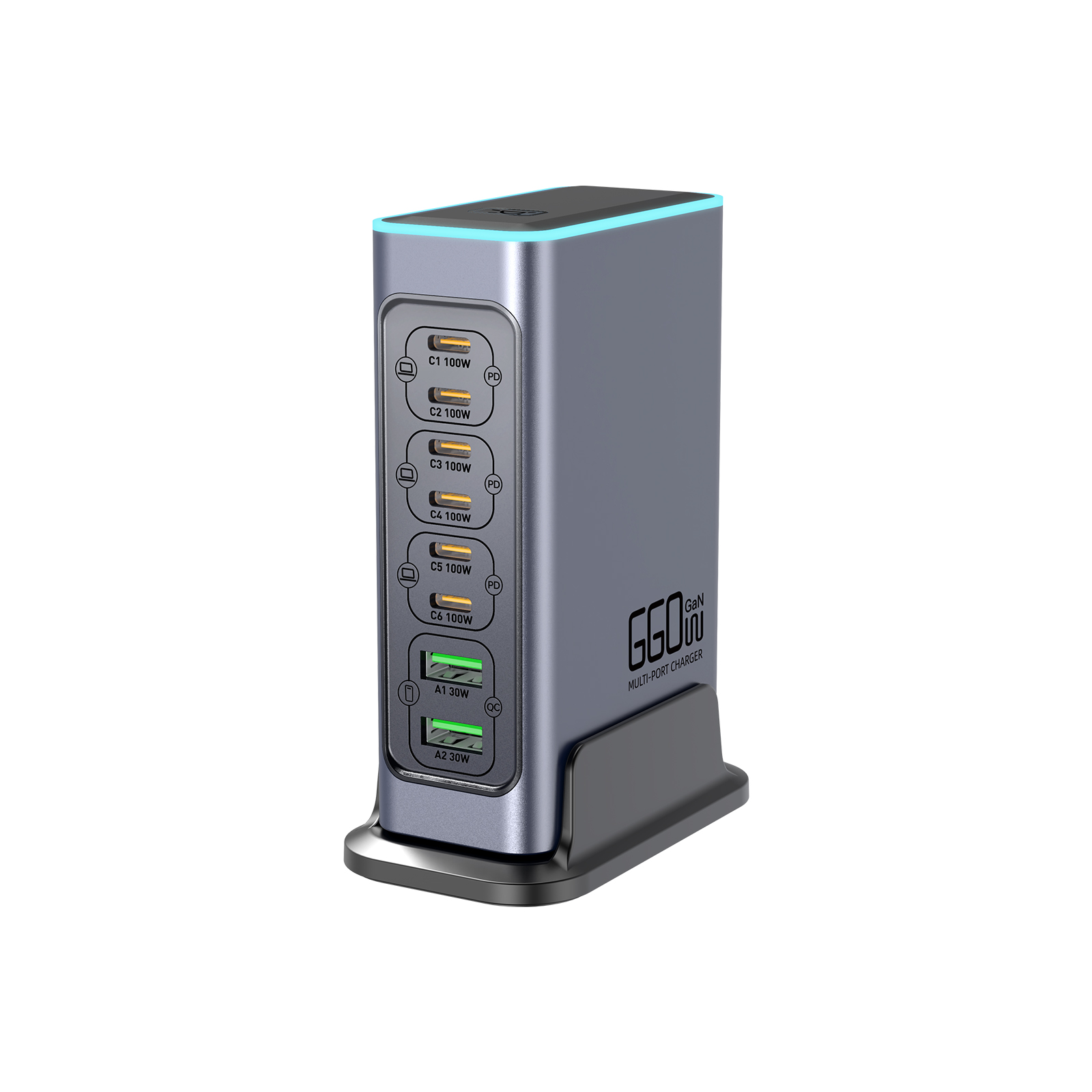

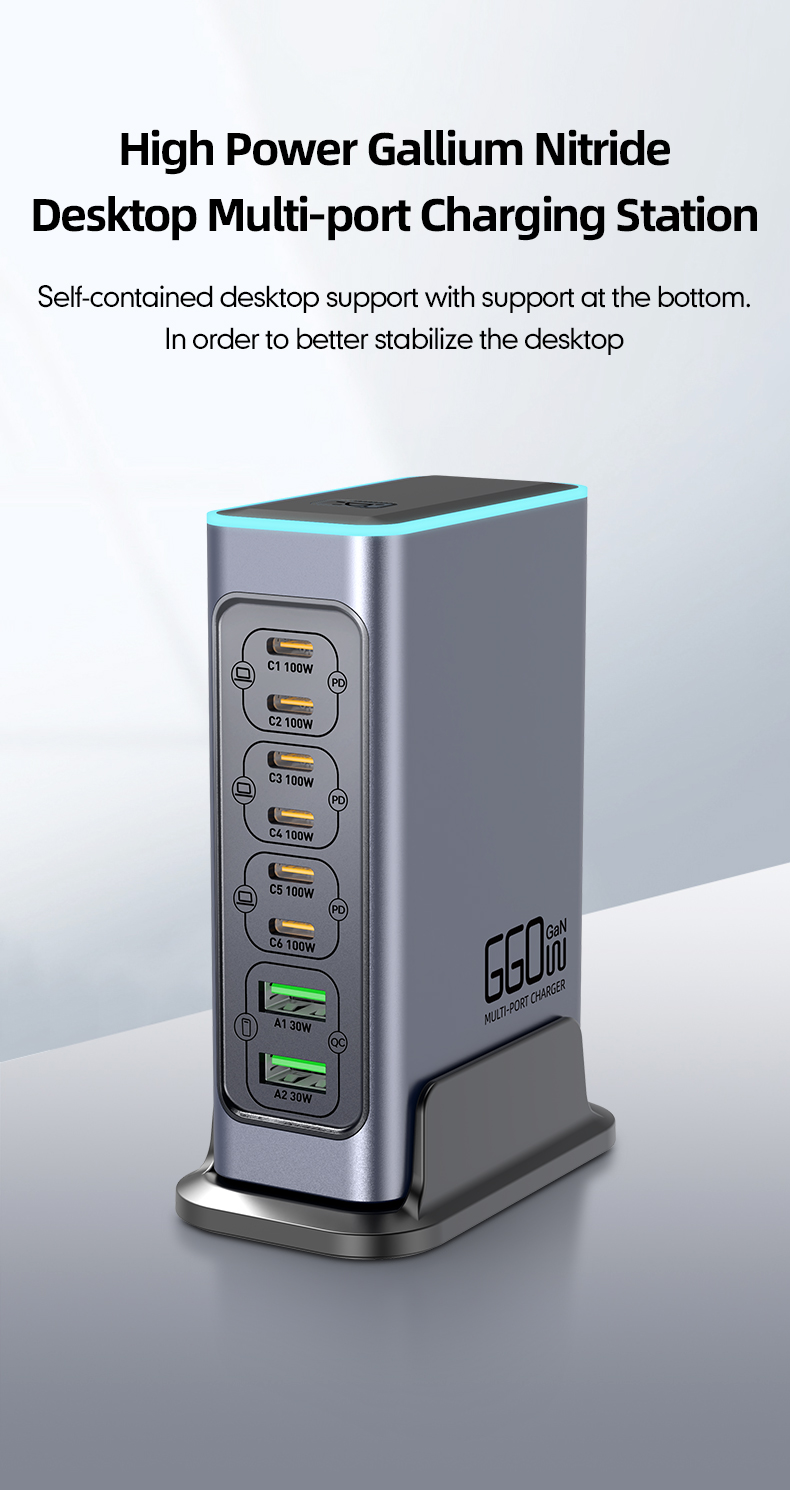

8 IN 1 High-Power GaN

Desktop Multi-Port Charging Station

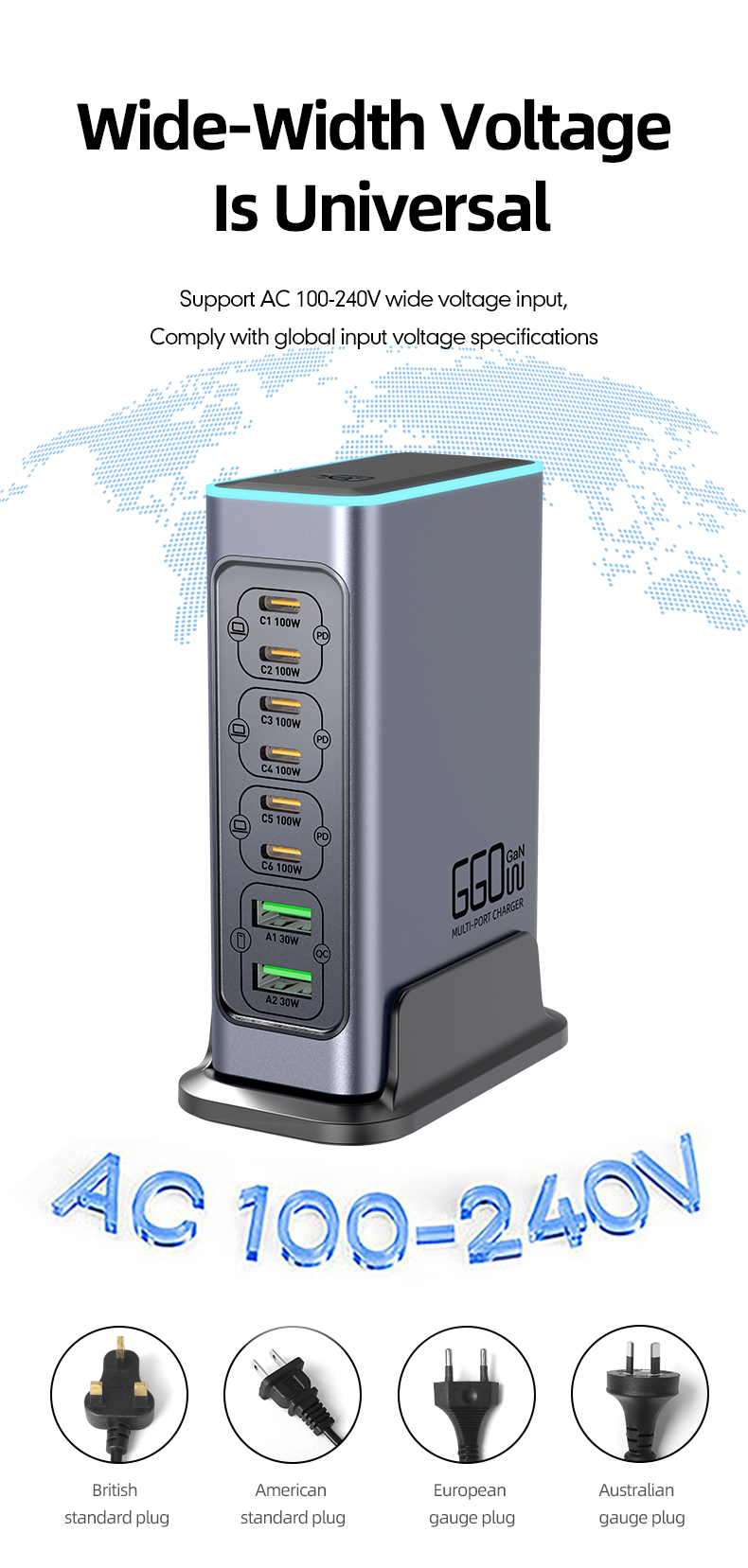

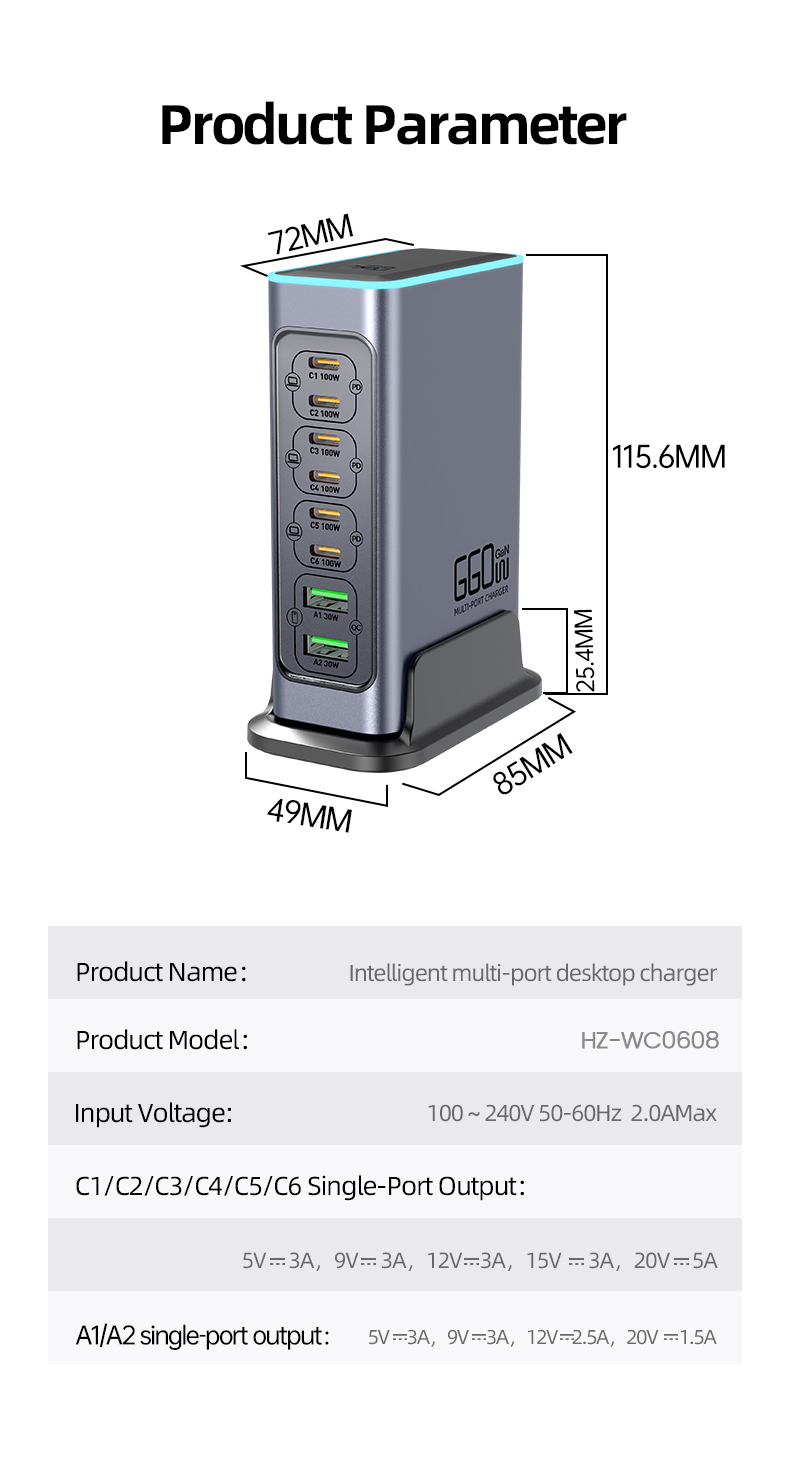

Input: AC-DC 100-240V 50/60Hz 2.0A

Output Total Power: 120W Max

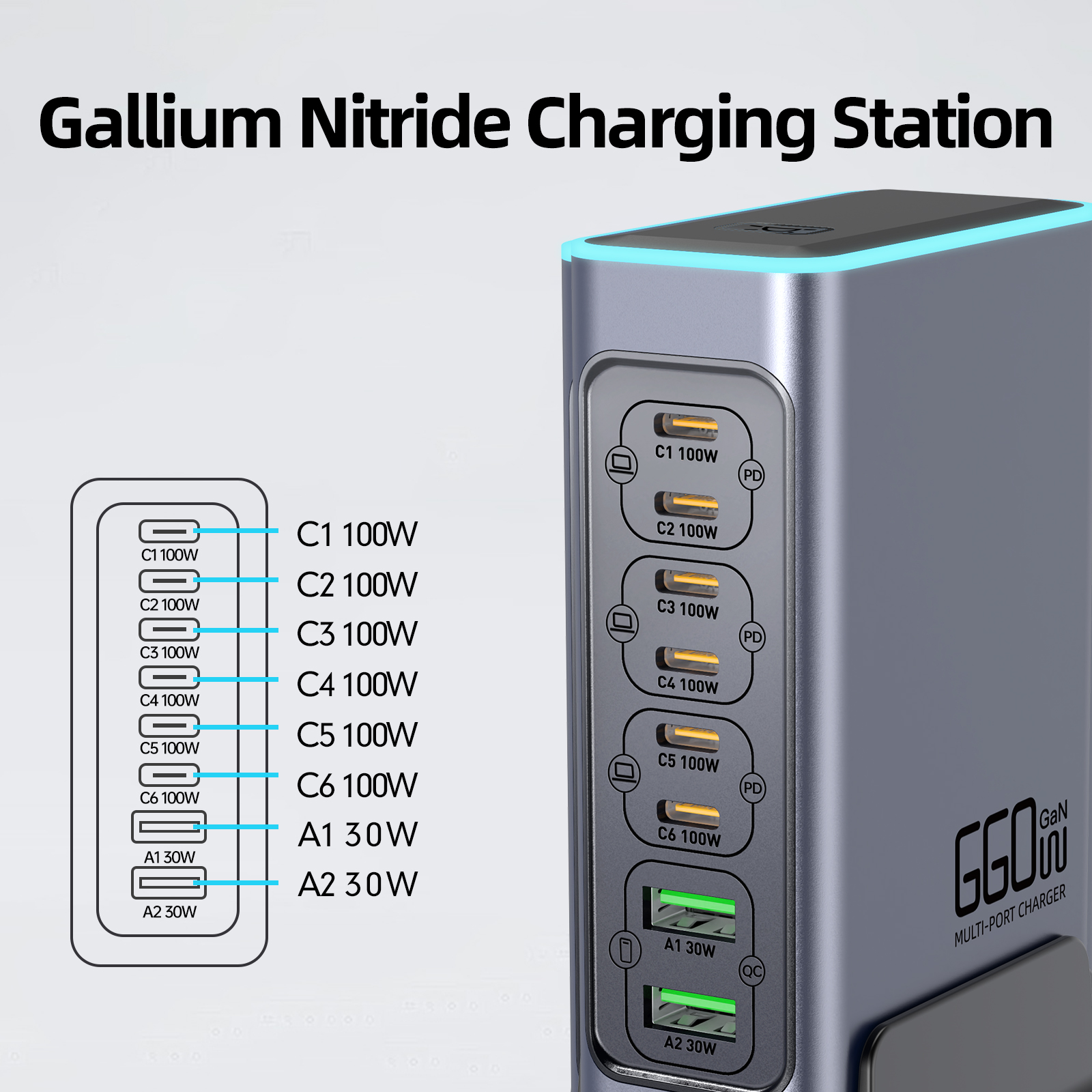

C1 Out: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/5A 100W Max

C2 Out: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/5A 100W Max

C3 Out: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/5A 100W Max

C4 Out: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/5A 100W Max

C5 Out: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/5A 100W Max

C6 Out: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/5A 100W Max

A1 Out: 5V/3A, 9V/3A,12/2.5A 30W Max

A2 Out: 5V/3A, 9V/3A,12/2.5A 30W Max

POWER Charging Protocols Support

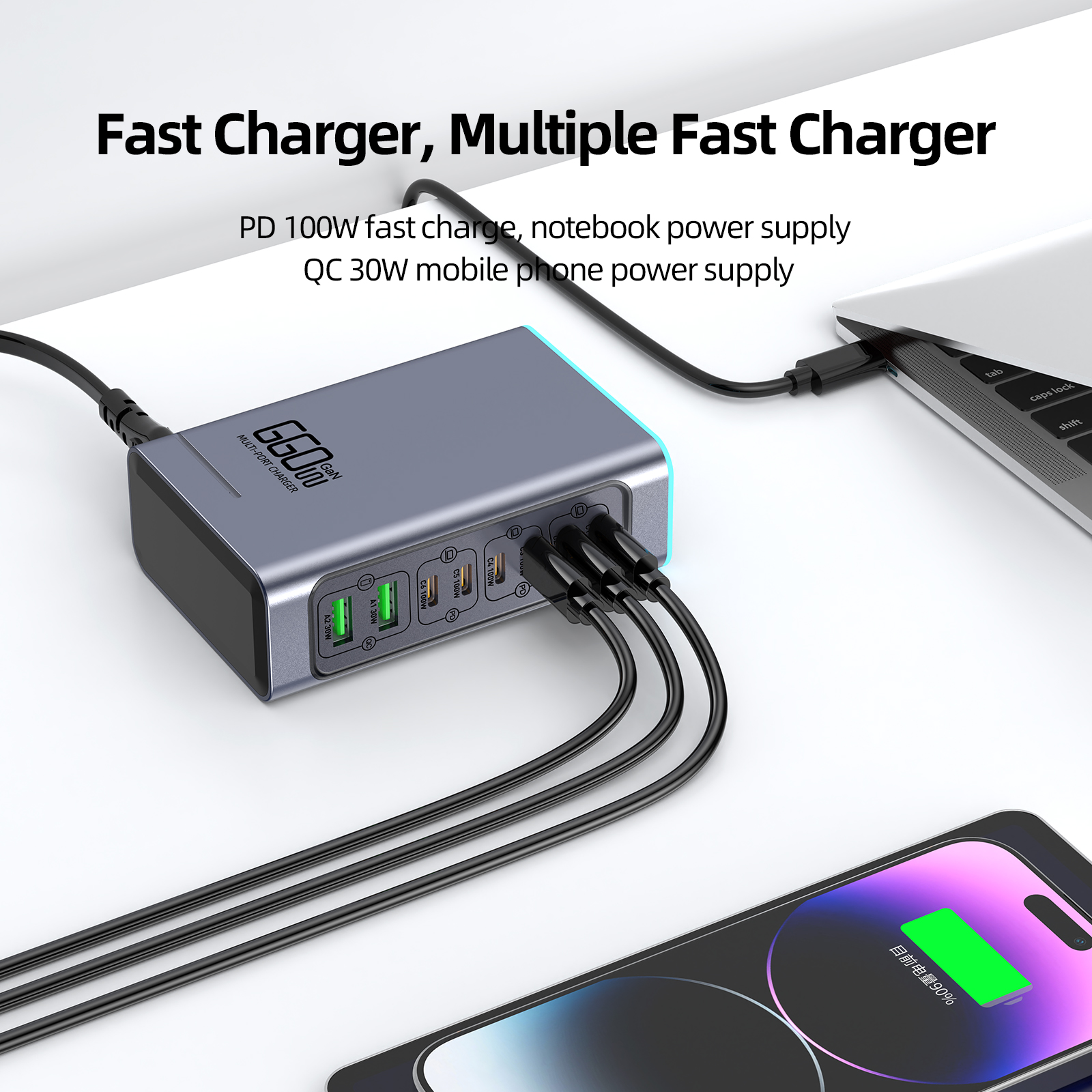

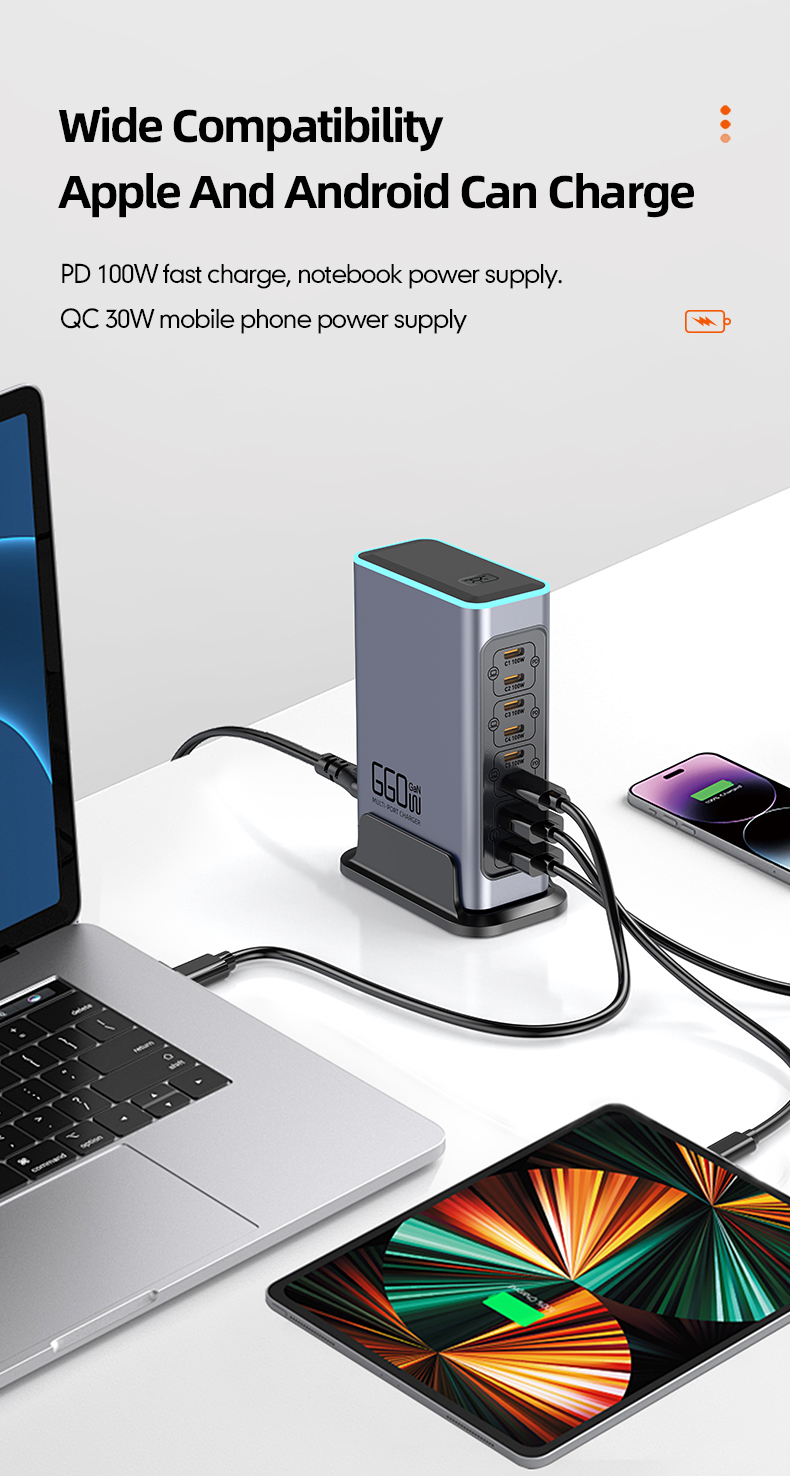

USB PD3.0 100W, PPS, QC5

PPS: 5-21V/5A 100W

QC3.0,FCP,SCP,AFC

1-Port Charging 100W Max

USB-C1/C2/C3/C4/C5/C6: 20V/5A 100W

USB-A1/A2: 20V/1.50A 30W

2-Port Charging 120W Max

USB-C1+C3/C4/C5/C6:  65W+65W

USB-C1+A1/A2:  87W+30W

USB-C2+C3/C4/C5/C6:  65W+65W

USB-C2+A1/A2:  87W+30W

USB-C3+C5/C6:  65W+65W

USB-C3+A1/A2:  87W+30W

USB-C4+C5/C6:  65W+65W

USB-C4+A1/A2:  87W+30W

USB-C5+A1/A2:  87W+30W

C1+C2/C3+C4/C5+C6: 15W+15W

3-Port Charging 125W Max

USB-C1+C3+C5: 65W+30W+30W

USB-C1+C3+C6: 65W+30W+30W

USB-C1+C4+C5: 65W+30W+30W

USB-C1+C4+C6: 65W+30W+30W

USB-C2+C3+C5: 65W+30W+30W

USB-C2+C4+C5: 65W+30W+30W

USB-C2+C3+C6: 65W+30W+30W

USB-C2+C4+C6: 65W+30W+30W

USB-C1+C3+A1/A2: 65W+30W+30W

USB-C1+C4+A1/A2: 65W+30W+30W

USB-C1+C5+A1/A2: 65W+30W+30W

USB-C1+C6+A1/A2: 65W+30W+30W

USB-C3+C5+A1/A2: 65W+30W+30W

USB-C3+C6+A1/A2: 65W+30W+30W

USB-C4+C6+A1/A2: 65W+30W+30W

4-Port Charging 120W Max

USB-C1+C3+C5+A1: 30W+30W+30W+30W

USB-C2+C4+C6+A2: 30W+30W+30W+30W

5-Port Charging 110W Max

USB-C1+C3+C5+A1+A2: 30W+30W+30W+10W+10W

USB-C2+C4+C6+A1+A2: 30W+30W+30W+10W+10W

USB-C3+C1+C2+A1+A2: 60W+15W+15W+10W+10W

USB-C4+C1+C2+A1+A2: 60W+15W+15W+10W+10W

6-Port Charging 120W Max

7-Port Charging 120W Max

8-Port Charging 120W Max

PS：A standard-rated charging cable is needed to enable

high-power fast charging.

PD3.0 100W: C-C 100W 5A E-marker fast charging cable required
