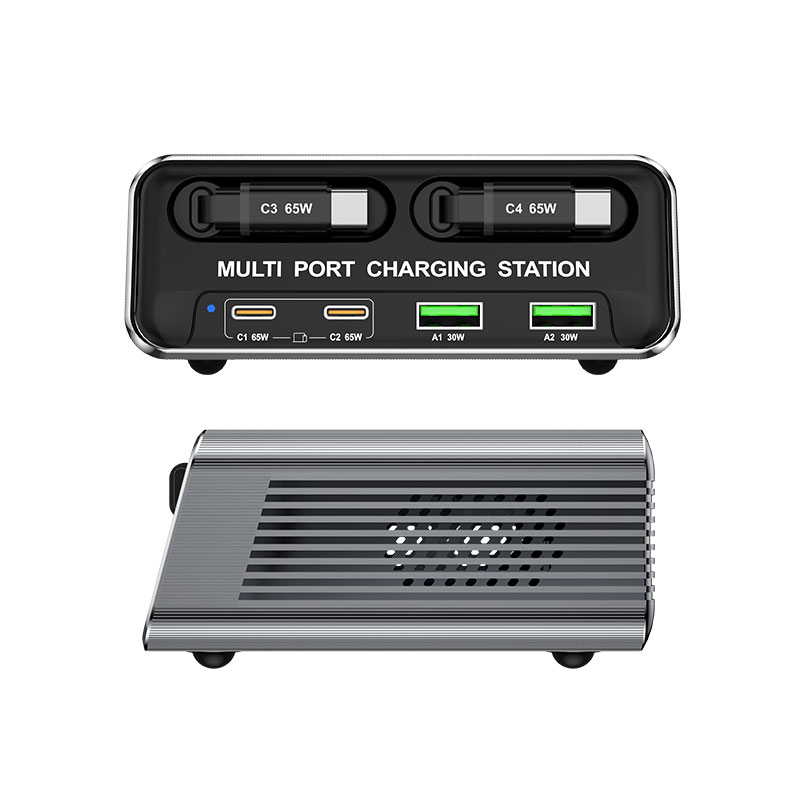

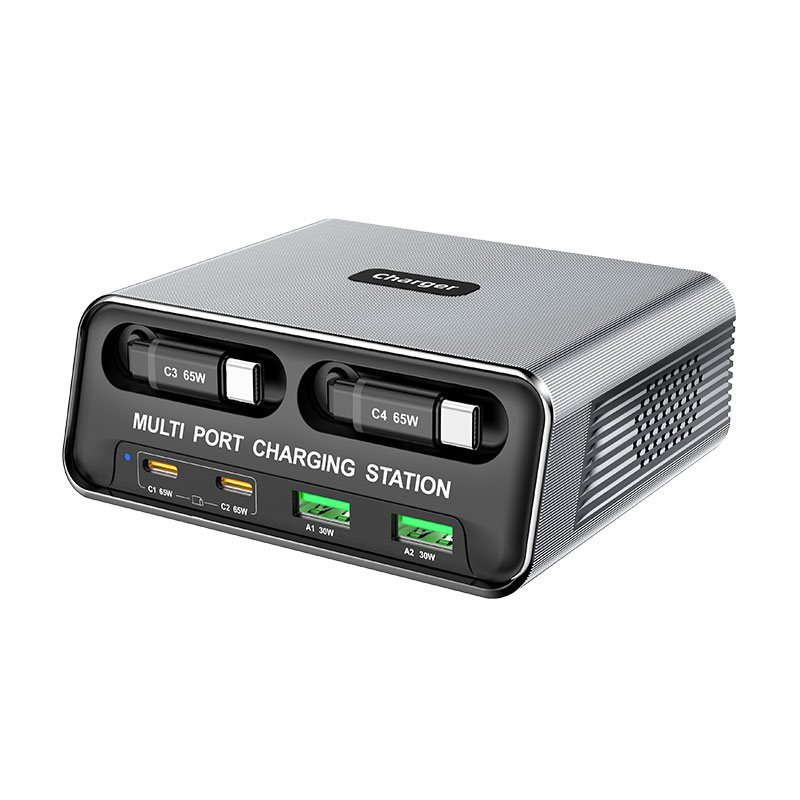

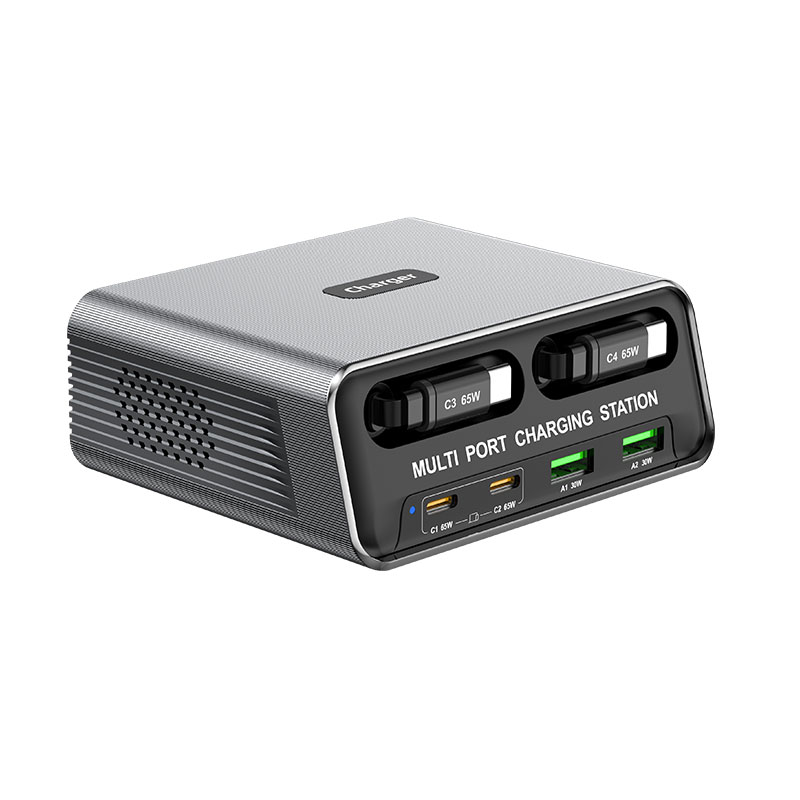

GaN 100W  4C2A—Desktop Charger

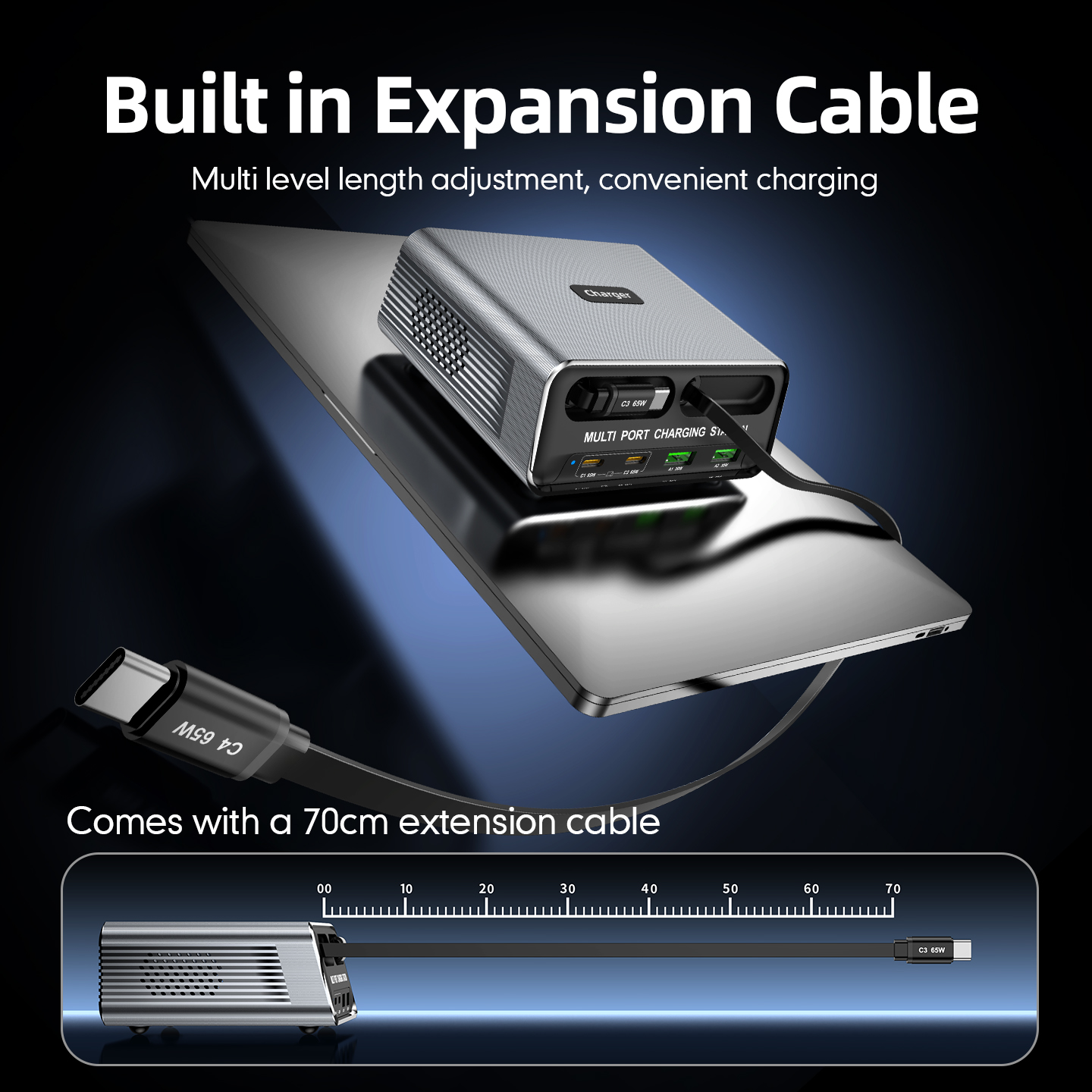

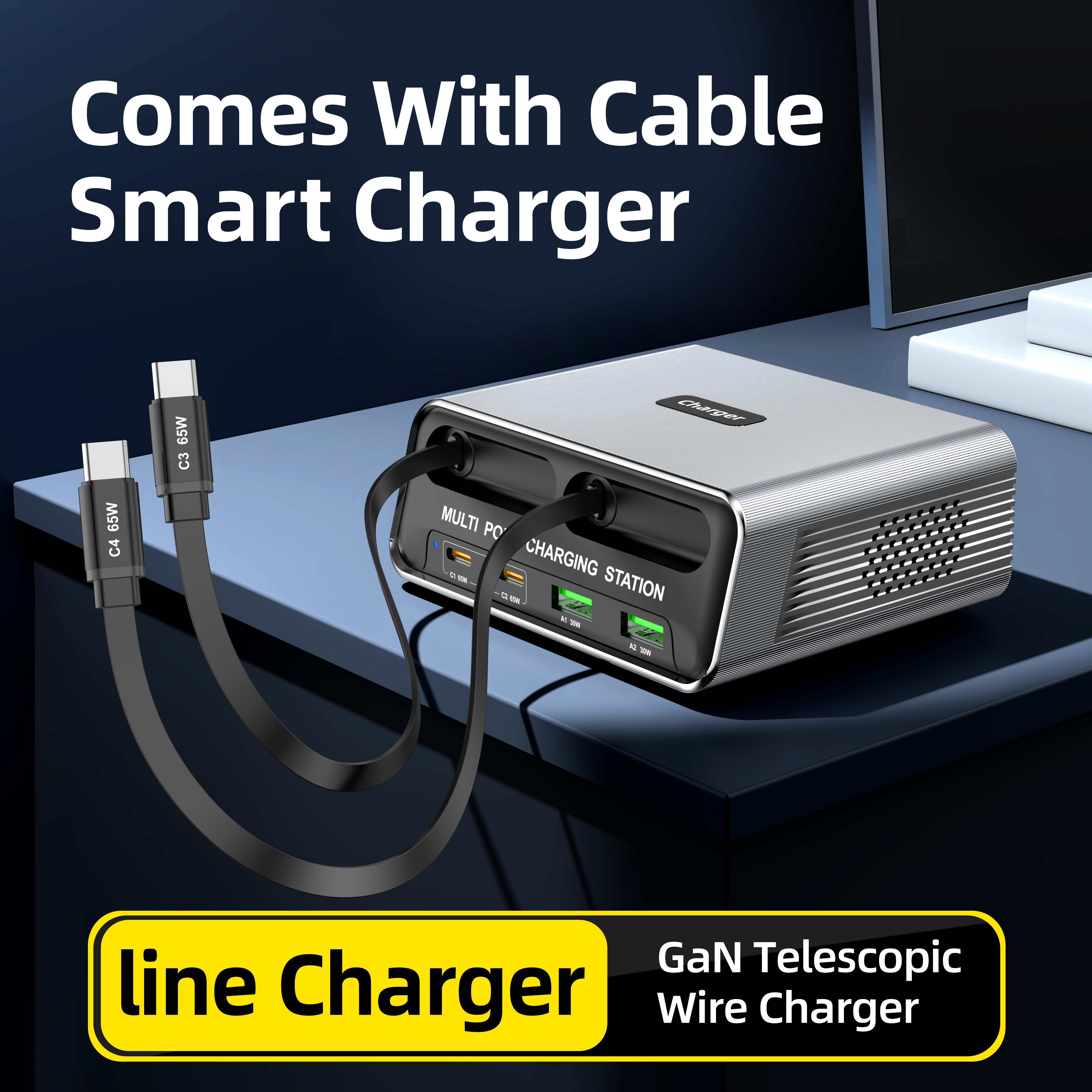

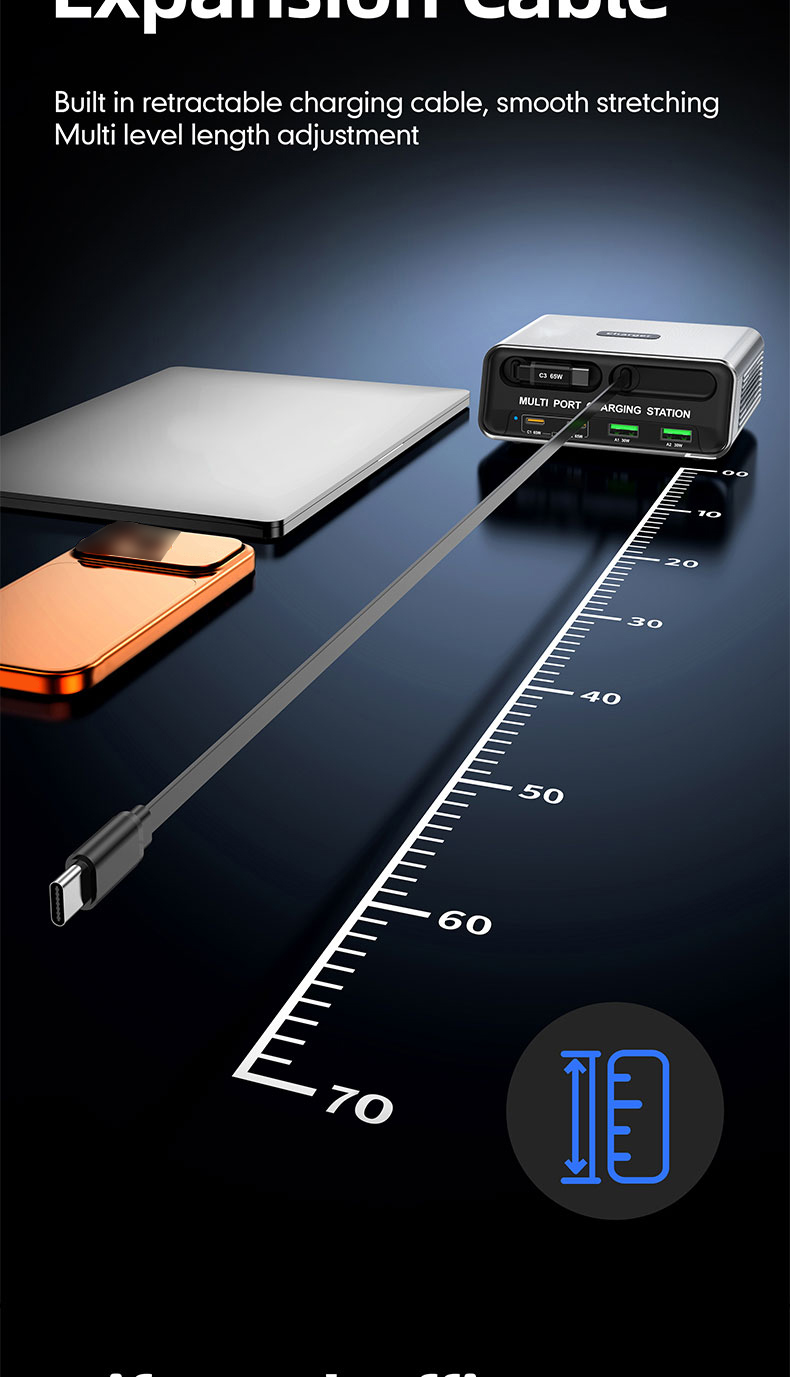

6 in 1 -Duo Retract Cable • GaN

PD3.0 USB-C1+C2+C3+C4+A1+A2

Input: AC-DC 100-240V 50/60Hz 2.0A

Output Total Power: 100W Max

USB-C1 & C2: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/3.25A 65W Max

USB-C3 & C4: 5V/3A, 9V/3A,12/3A,15V/3A, 20V/3.25A 65W Max

USB-A1 & A2: 5V/3A, 9V/3A,12V/2.5A, 20V/1.5A 30W Max

POWER Charging Protocols Support

USB PD3.0 65W, PPS, QC5

PPS: 5-21V/3A 65W

QC3.0,FCP,SCP,AFC

1-Port Charging 65W Max

USB-C1: 65W

USB-C2: 65W

USB-C3: 65W

USB-C4: 65W

USB-A1: 30W

USB-A2: 30W

2-Port Charging 95W Max

USB-C1+C3:  65W+30W

USB-C1+C4:  65W+30W

USB-C1+A1:  65W+30W

USB-C1+A2:  65W+30W

USB-C2+C3:  65W+30W

USB-C2+C4:  65W+30W

USB-C2+A1:  65W+30W

USB-C2+A2:  65W+30W

USB-C3+C4:  30W+30W

USB-C3+A2:  30W+30W

USB-C4+A1:  30W+30W

USB-A1+A2:  30W+30W

USB-C1+C2:  7.5W+7.5W

3-Port Charging 90W Max

USB-C1+C3+C4: 30W+30W+30W

USB-C2+C3+C4: 30W+30W+30W

USB-C1+C3+A2: 65W+30W+30W

USB-C2+C4+A1: 65W+30W+30W

4-Port Charging 95W Max

USB-C1+C3+C4+A1: 30W+7.5W+30W+7.5W

USB-C1+C3+C4+A2: 30W+30W+7.5W+7.5W

5-Port Charging 60W Max

USB-C1+C3+C4+A1+A2: 30W+7.5W+7.5W+7.5W+7.5W

USB-C2+C3+C4+A1+A2: 30W+7.5W+7.5W+7.5W+7.5W

USB-C1+C2+C4+A1+A2: 7.5W+7.5W+7.5W+30W+7.5W

USB-C1+C2+C3+A1+A2: 7.5W+7.5W+7.5W+7.5W+30W

6-Port Charging 60W Max

USB-C1+C2+C3+C4+A1+A2: 7.5W+7.5W+7.5W+7.5W+7.5W+7.5W
